  6. Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12

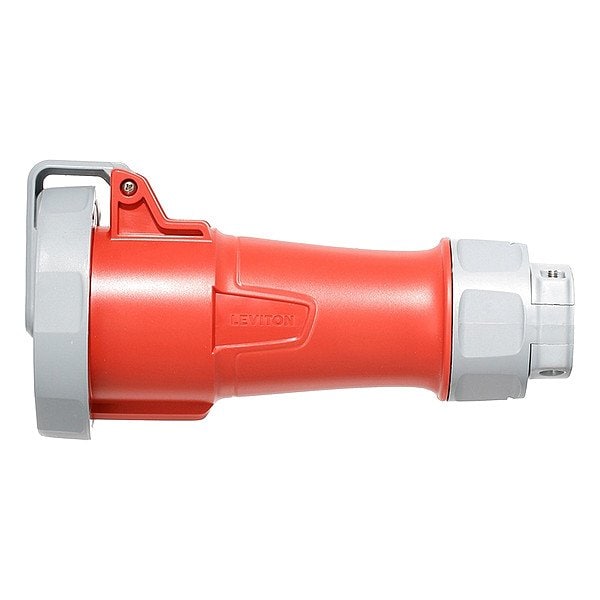

Leviton Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12 530C7WLEV - main

Pin & Sleeve Connector, 30 A, 277/480V AC, Three Phase, 4 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12

  • Mfr # 530C7WLEV

  • Zoro # G815554900

product price:  $302.99
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
530C7WLEV
Zoro #
G815554900
UPC #
078477921074
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.125 in
For Minimum Cable Diameter
0.58 in
Overall Length
7.81 in
Face Diameter
2.052 in
Minimum Wire Size
10 AWG
Maximum Wire Size
8 AWG

Details

Item
Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
277/480V AC
Phase
Three
Number of Poles
4
Number of Wires
5
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
3R, 4X, 6P, 12
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Switch Rated
No
Grounding Style
IEC
Housing Color
Red
Cap Type
Flip-Up Cap, Screw-On Cap
Standards
CE, CSA C22.2, IEC Rating 60309-1 and 60309-2, NOM, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV Resistance
Features
Hex Style Socket Screws for Terminals
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Shrouded
Yes
Grounding
Grounded
For Environment
Industrial
Power Indicating Light
No
Horsepower Rating
10 hp
Reverse Service
No
For Location
Outdoor
Maximum Operating Temperature
140 Degrees F
UL 94 Flammability Rating
HB, V-0

Description

LEV Series IEC Pin and Sleeve Connector
