  11. Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Blue

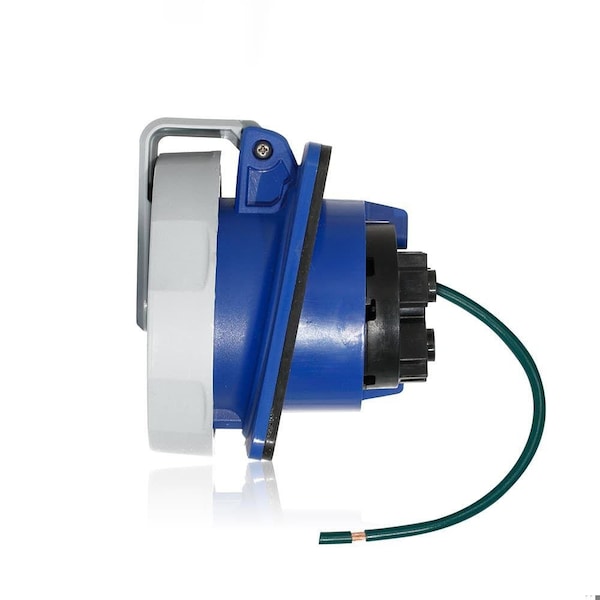

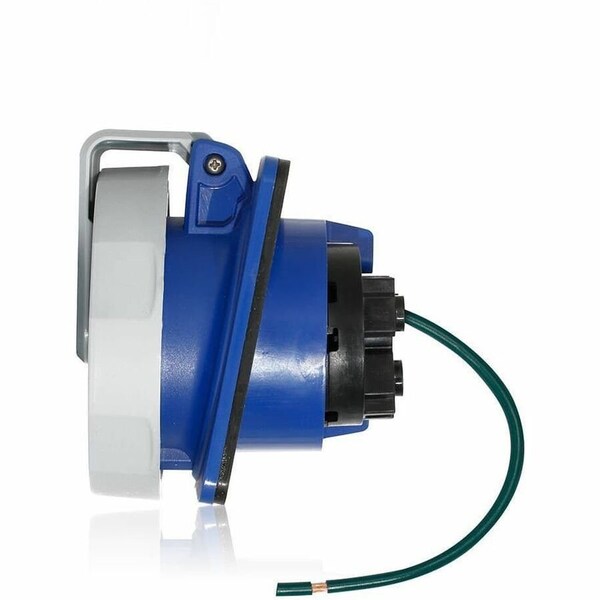

Leviton Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Blue 430R9WLEV - main

Pin & Sleeve Receptacle, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, Blue

  • Mfr # 430R9WLEV

  • Zoro # G016091594

product price: $201.75
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
430R9WLEV
Zoro #
G016091594
UPC #
078477921760
Country of Origin
Mexico

Dimensions

Maximum Wire Size
8 AWG
Minimum Wire Size
12 AWG
Flange Width
3.75 in
Flange Height
3.75 in

Details

Item
Pin & Sleeve Receptacle
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
3R, 4X, 6P, 12
Wire Connection Type
Screw Terminals
Housing Color
Blue
Standards
CE, CSA C22.2 No. 182.1-13 (Harmonized with UL 1682), IEC Rating 60309-1, 60309-2, NOM-ANCE, NSF 14159-1, RoHS, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV/Sunlight Resistant, Watertight
Flange Type
Flanged
Features
Hex Style Socket Screws for Terminals
Grounding Style
IEC
Housing Material
PBT
Horsepower Rating
7 1/2 hp
Compatible with Series
LEV
For Environment
Corrosive
UL 94 Flammability Rating
V-0
Market
Industrial
Shrouded
Yes
Hazardous Location Specification
Not Rated
Number of Gangs
1

Description

Pin and Sleeve Receptacle
