No Product Image Available

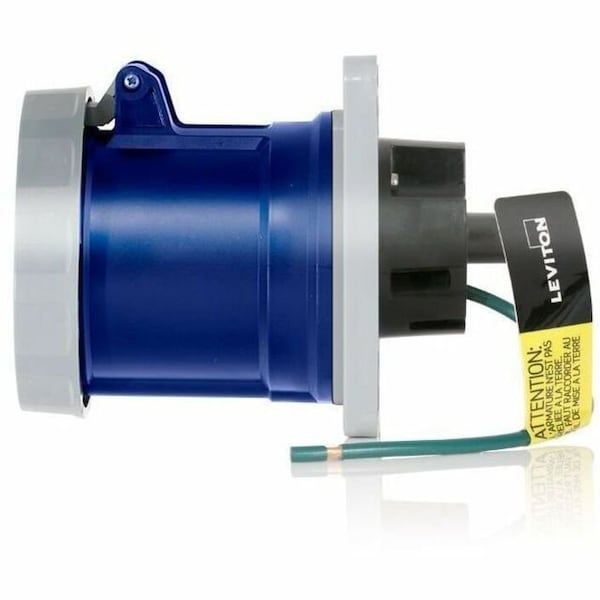

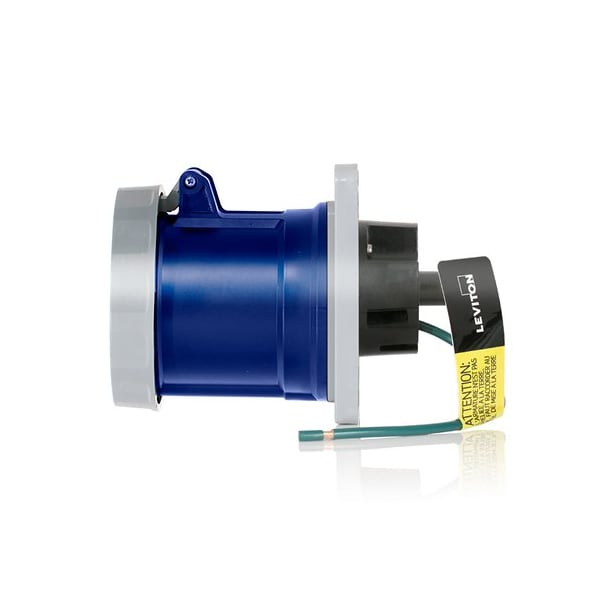

PinandSleeveRcptcl, 60A, 71/2hp, Bl, Nylon

  • Mfr # 460R9WLEV

  • Zoro # G022586336

product price:  $510.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
460R9WLEV
Zoro #
G022586336
UPC #
78477901915
Country of Origin
Mexico

Dimensions

Maximum Wire Size
2 AWG
Hub Diameter
1.5 in
For Maximum Cable Diameter
3 in
Minimum Wire Size
8 AWG

Details

Item
Pin and Sleeve Receptacle
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
Wire Connection Type
Screw Terminals
Housing Color
Blue
Standards
CSA, IEC 60309-1 and 60309-2, NOM-ANCE Requirements, NSF, UL 1682
Resistance Properties
Corrosion Resistant
For Environment
Industrial
Housing Material
Nylon
Contact Material
Nickel-Plated Brass
Power Indicating Light
No
Horsepower Rating
7 1/2 hp
Shrouded
Yes
GFCI
No
Features
Front Housing Features Screwless Assembly, Private Labeling Capabilities
Grounding
Grounded
Hazardous Location Specification
Not Rated
Reverse Service
No
Market
Industrial
UL 94 Flammability Rating
HB, V-0
For Location
Outdoor
Number of Gangs
1
Flange Type
Flanged

Description

Pin and Sleeve Receptacle, Current Rating 60 A, Flange Type Flanged, Grounding Style IEC, Hazardous Location Specification Not Rated, IP Rating IP66, IP67, IP68, IP69K, NEMA Enclosure Rating 12, 3R, 4X, 6P, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Shrouded Yes, Voltage Rating 250V AC, Grounding Grounded, Horsepower Rating 7 1/2 hp, Housing Color Blue, Housing Material Nylon, Market Industrial, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG
