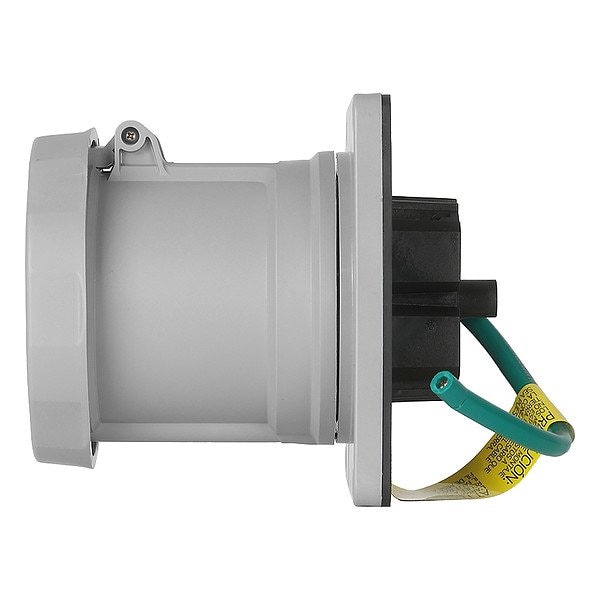

PinandSleeveReceptacle, 100A, Gray, Nylon

  • Mfr # M4100R12WLEV

  • Zoro # G722729439

product price:  $1,689.99
/ea
Free Shipping & Returns

Key Features

Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M4100R12WLEV
Zoro #
G722729439
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
3 AWG
Maximum Wire Size
3/0 AWG
Hub Diameter
1.5 in

Details

Item
Pin and Sleeve Receptacle
Current Rating
100 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
Wire Connection Type
Screw Terminals
Housing Color
Gray
Standards
ABYC Certified
Resistance Properties
Corrosion Resistant, UV/Sunlight Resistant
For Environment
Corrosive, Marine
Hazardous Location Specification
Not Rated
Housing Material
Nylon
Number of Gangs
1
UL 94 Flammability Rating
V-0
Features
Industry-Exclusive - the Only Manufacturer of ABYC Certified Pin & Sleeve Devices in the Market, Marine Grade - Withstands Harsh, Corrosive Marine Environments, Superior Watertight Ratings - Including IP68 for Long-Term Submersion
Reverse Service
No
Minimum Operating Temperature
-35 Degrees C
GFCI
No
Shrouded
Yes
Market
Industrial
Flange Type
Flanged
Horsepower Rating
Not Rated
Power Indicating Light
No
Maximum Operating Temperature
66 Degrees C

Description

Pin and Sleeve Receptacle, Current Rating 100 A, Flange Type Flanged, Grounding Style IEC, Hazardous Location Specification Not Rated, IP Rating IP66, IP67, IP68, IP69K, NEMA Enclosure Rating 12, 3R, 4X, 6P, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Shrouded Yes, Voltage Rating 125/250V AC, Horsepower Rating Not Rated, Housing Color Gray, Housing Material Nylon, Market Industrial, Maximum Wire Size 3/0 AWG, Minimum Wire Size 3 AWG, Power Indicating Light No
