Shop LEVITON

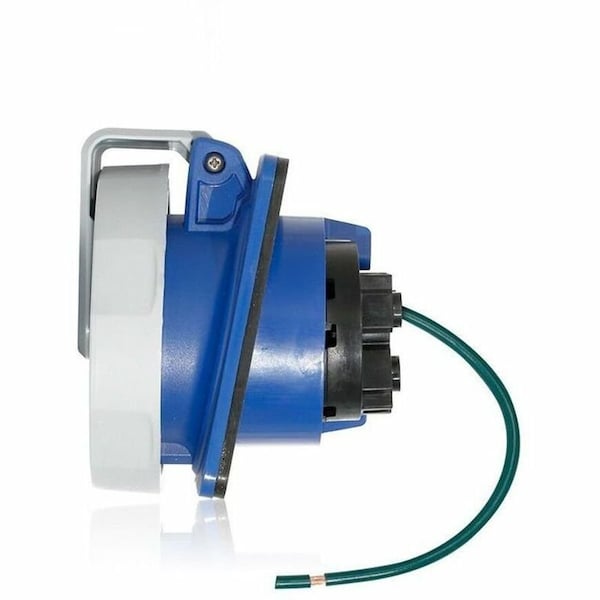

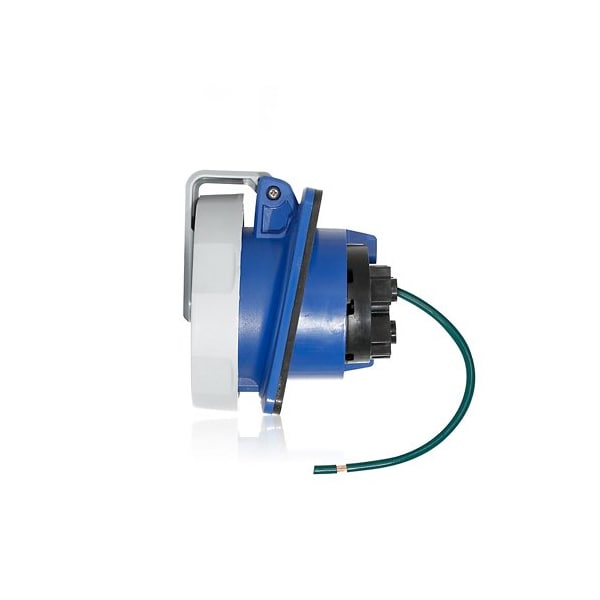

PinandSleeveReceptacle, 20A, Blue, PBT

  • Mfr # 320R6WLEV

  • Zoro # G822587021

product price:  $171.99
/ea
Free Shipping & Returns

Key Features

Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP68, IP69K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
320R6WLEV
Zoro #
G822587021
UPC #
78477953143
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.375 in
Hub Diameter
1 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Pin and Sleeve Receptacle
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
Wire Connection Type
Screw Terminals
Housing Color
Blue
Standards
CSA, IEC 60309-1 and 60309-2, NOM-ANCE Requirements, NSF, UL 1682
Resistance Properties
Corrosion Resistant
Horsepower Rating
Not Rated
Shrouded
Yes
Flange Type
Flanged
Market
Industrial
UL 94 Flammability Rating
HB, V-0
GFCI
No
Power Indicating Light
No
Number of Gangs
1
For Environment
Industrial
Hazardous Location Specification
Not Rated
Reverse Service
No
Contact Material
Nickel-Plated Brass
For Location
Outdoor
Housing Material
PBT
Grounding
Grounded
Features
Front Housing Features Screwless Assembly, Private Labeling Capabilities

Description

Pin and Sleeve Receptacle, Current Rating 20 A, Flange Type Flanged, Grounding Style IEC, Hazardous Location Specification Not Rated, IP Rating IP66, IP67, IP68, IP69K, NEMA Enclosure Rating 12, 3R, 4X, 6P, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Grounding Grounded, Horsepower Rating Not Rated, Housing Color Blue, Housing Material PBT, Market Industrial, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG
