Shop LEVITON

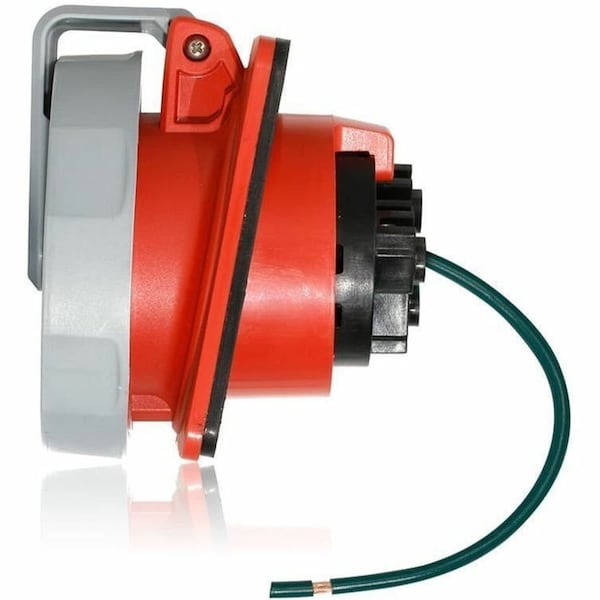

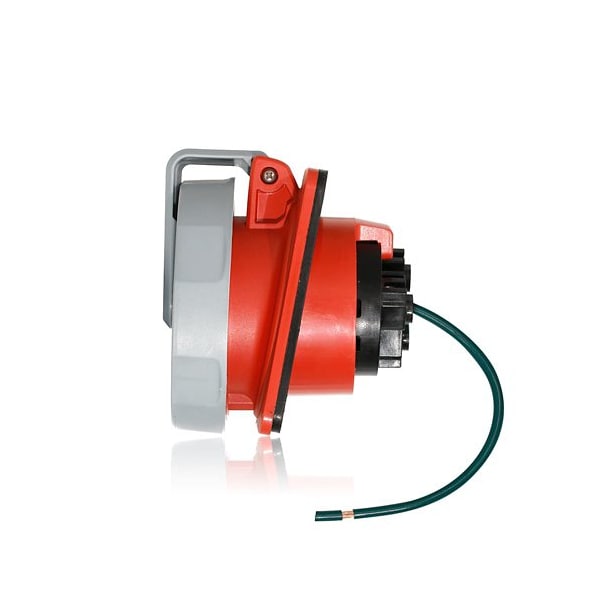

PinandSleeveReceptacle, 30A, 10hp, Red, PBT

  • Mfr # 530R7WLEV

  • Zoro # G922587426

product price:  $337.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Wires
5
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
Number of Poles
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
530R7WLEV
Zoro #
G922587426
UPC #
78477921111
Country of Origin
Mexico

Dimensions

Minimum Wire Size
12 AWG
Hub Diameter
1 in
Maximum Wire Size
8 AWG
For Maximum Cable Diameter
1.625 in

Details

Current Rating
30 A
Phase
Three
Number of Wires
5
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
Number of Poles
4
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
12, 3R, 4X, 6P
Grounding
Grounded
Shrouded
Yes
Market
Industrial
Maximum Operating Temperature
60 Degrees C
Standards
CSA, IEC 60309-1 and 60309-2, NOM-ANCE Requirements, NSF, UL 1682
For Environment
Industrial
Features
Front Housing Features Screwless Assembly, Private Labeling Capabilities
Number of Gangs
1
Contact Material
Nickel-Plated Brass
For Location
Outdoor
Minimum Operating Temperature
-40 Degrees C
Resistance Properties
Corrosion Resistant
Power Indicating Light
No
Reverse Service
No
Item
Pin and Sleeve Receptacle
Housing Material
PBT
Voltage Rating
277/480V AC
Horsepower Rating
10 hp
Hazardous Location Specification
Not Rated
Flange Type
Flanged
GFCI
No
UL 94 Flammability Rating
HB, V-0

Description

Pin and Sleeve Receptacle, Current Rating 30 A, Flange Type Flanged, Grounding Style IEC, Hazardous Location Specification Not Rated, IP Rating IP66, IP67, IP68, IP69K, NEMA Enclosure Rating 12, 3R, 4X, 6P, Number of Gangs 1, Number of Poles 4, Number of Wires 5, Phase Three, Shrouded Yes, Voltage Rating 277/480V AC, Grounding Grounded, Horsepower Rating 10 hp, Housing Color Red, Housing Material PBT, Market Industrial, Maximum Wire Size 8 AWG, Minimum Wire Size 12 AWG, Power Indicating Light No
