Shop LEVITON
See all product information
Plugs and Receptacles
Mfr # 15R21-UR
Zoro # G622587887
product price:Â $33.75
/eaKey Features
End Type
Taper Nose
Connection Orientation
Angled
For Location
Outdoor
Minimum Wire Size
8 AWG
Voltage Rating
600V AC, 600V DC
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 15R21-UR
- Zoro #
- G622587887
- UPC #
- 78477709900
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 8 AWG
- Maximum Wire Size
- 2 AWG
- Threaded Stud Termination Length
- 0.5 in
Details
- End Type
- Taper Nose
- Connection Orientation
- Angled
- For Location
- Outdoor
- Voltage Rating
- 600V AC, 600V DC
- Standards
- UL/CSA 1691
- Gender
- Male
- NEMA Enclosure Rating
- 3R
- Housing Material
- Santoprene TPV
- Terminal Connection Type
- Threaded Stud
- Flange Shape
- Rectangular
- Minimum Operating Temperature
- -40 Degrees F
- Mounting Style
- Through Hole Mounting
- Current Rating
- 150 A
- Series
- 15
- Housing Color
- Red
- Maximum Operating Temperature
- 185 Degrees F
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Item
- Single Pole Receptacle
Description

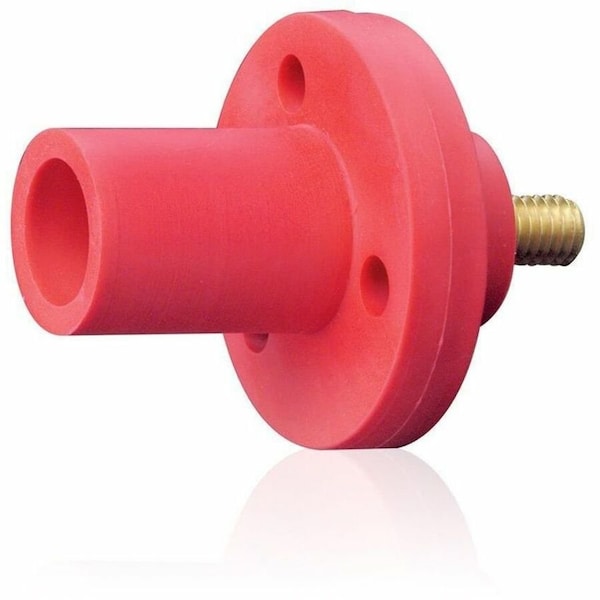

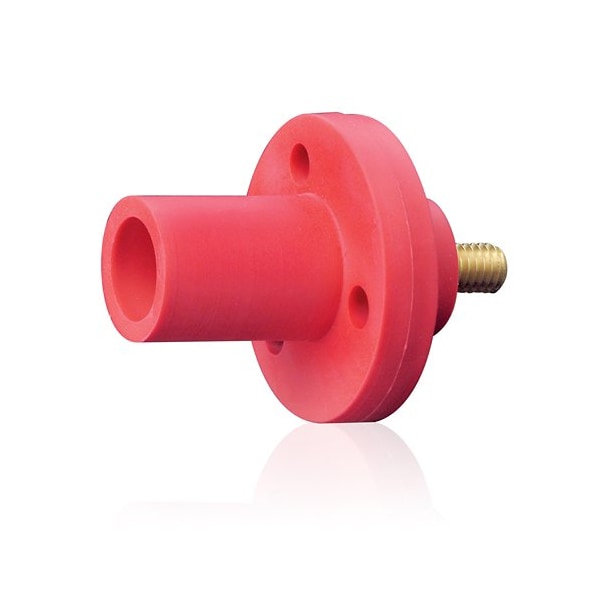

Single Pole Receptacle, Connection Orientation Angled, Current Rating 150 A, Gender Male, Housing Color Red, Housing Material Santoprene TPV, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Shape Rectangular, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Location Surface
