Plugs and Receptacles
Mfr # 15R22-UB
Zoro # G122587295
product price:Â
$
32.19
/ea
Key Features
Connection Orientation
Angled
Flange Diameter
1.9 in
Maximum Operating Temperature
185 Degrees F
Series
15
Minimum Wire Size
8 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 15R22-UB
- Zoro #
- G122587295
- UPC #
- 78477711910
- Country of Origin
- Mexico
- Connection Orientation
- Angled
- Maximum Operating Temperature
- 185 Degrees F
- Series
- 15
- Minimum Operating Temperature
- -40 Degrees F
- Housing Color
- Blue
- Housing Material
- Santoprene TPV
- Terminal Connection Type
- Threaded Stud
- For Location
- Outdoor
- Current Rating
- 150 A
- Mounting Style
- Through Hole Mounting
- NEMA Enclosure Rating
- 3R
- Gender
- Female
- Item
- Single Pole Receptacle
- Standards
- UL/CSA 1691
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Voltage Rating
- 600V AC, 600V DC
- End Type
- Taper Nose
- Flange Shape
- Rectangular
Description

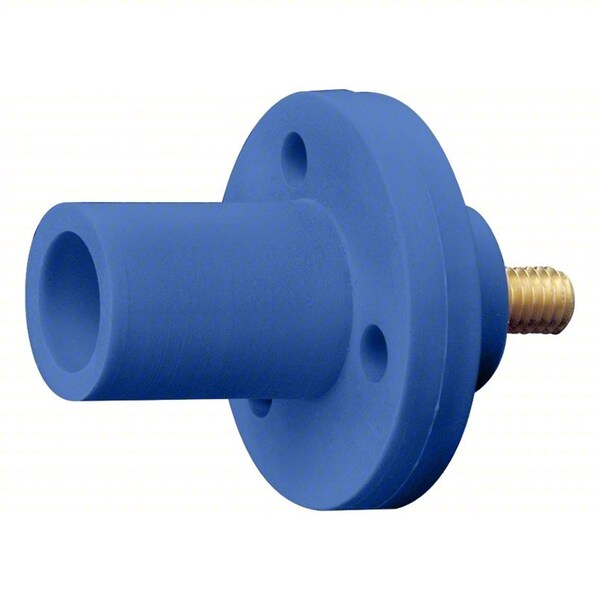

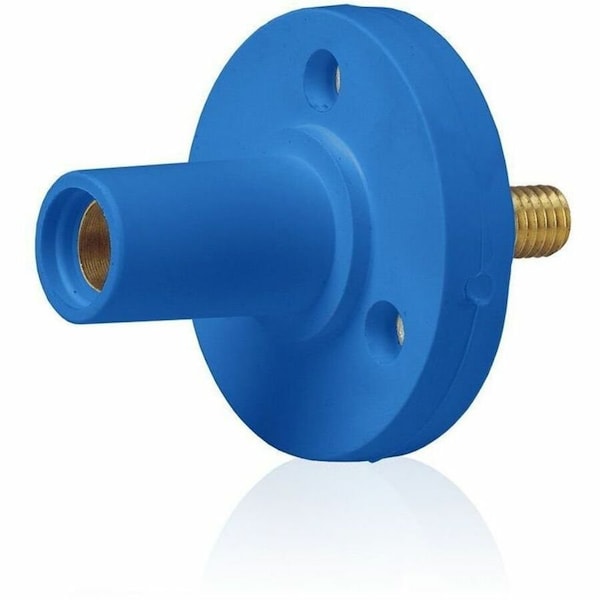

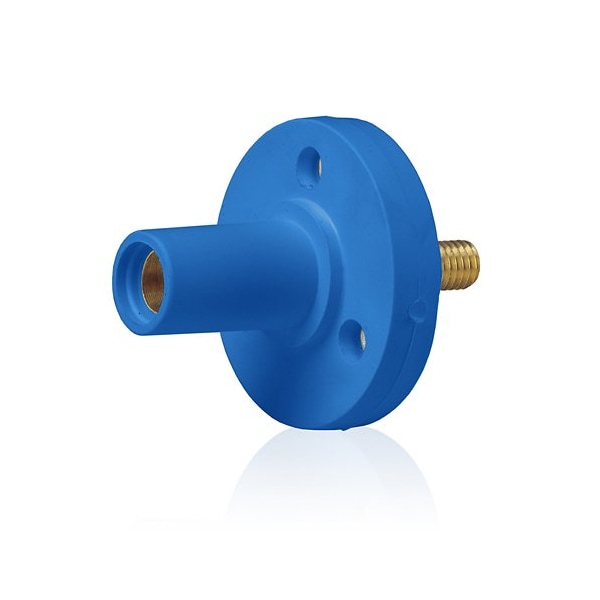

Single Pole Receptacle, Connection Orientation Angled, Current Rating 150 A, Gender Female, Housing Color Blue, Housing Material Santoprene TPV, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Diameter 1.9 in, Flange Shape Rectangular, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
