Plugs and Receptacles
- Mfr # 16R20-UO
- Zoro # G922587099
product price:Â
$
46.35
/ea
Key Features
Current Rating
400 A
For Location
Outdoor
Flange Shape
Square
Minimum Wire Size
2 AWG
Standards
CSA, UL
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R20-UO
- Zoro #
- G922587099
- UPC #
- 78477859865
- Country of Origin
- Mexico
- Current Rating
- 400 A
- For Location
- Outdoor
- Flange Shape
- Square
- Item
- Single Pole Receptacle
- Standards
- CSA, UL
- Housing Material
- Nylon
- Maximum Operating Temperature
- 185 Degrees F
- Terminal Connection Type
- Half Round with Tapped Hole
- NEMA Enclosure Rating
- 3R
- Minimum Operating Temperature
- -40 Degrees F
- Mounting Style
- Through Hole Mounting
- Gender
- Female
- Voltage Rating
- 600V AC, 600V DC
- Series
- 16
- Connection Orientation
- Straight
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Housing Color
- Orange
- End Type
- Taper Nose
- Contact Material
- Brass

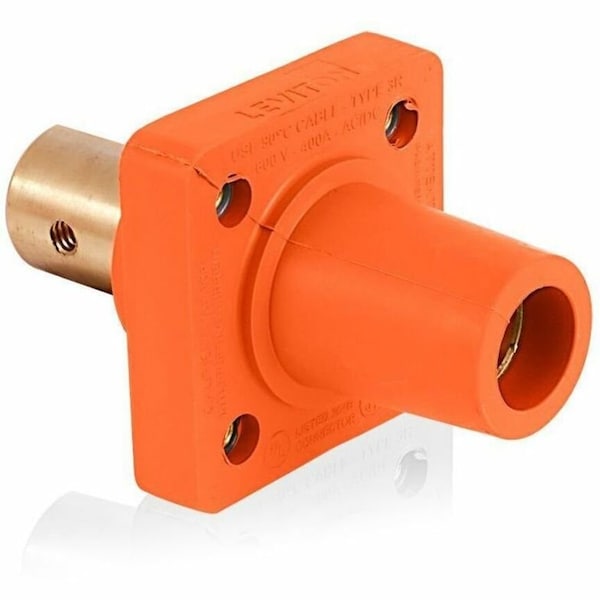

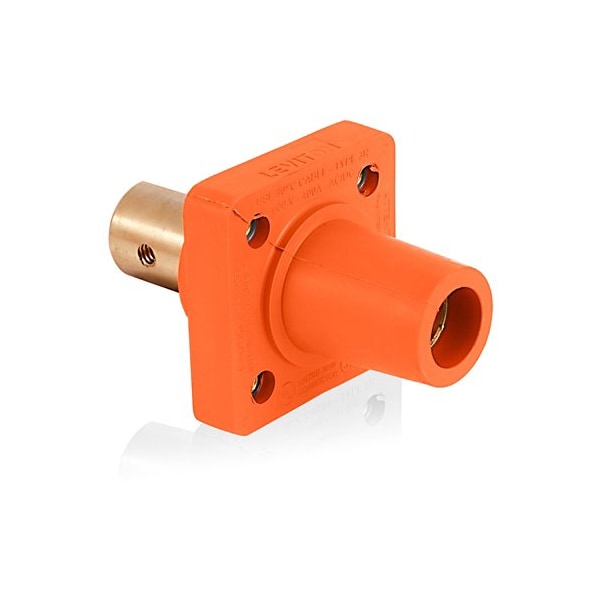

Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Orange, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Half Round with Tapped Hole, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
