Plugs and Receptacles
Mfr # 16R21-UY
Zoro # G022586305
product price:Â $57.39
/eaKey Features
Minimum Wire Size
2/0 AWG
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Standards
UL/CSA 1691
NEMA Enclosure Rating
3R
Voltage Rating
600V AC, 600V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R21-UY
- Zoro #
- G022586305
- UPC #
- 78477716830
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 2/0 AWG
- Flange Width
- 2.28 in
- Overall Width
- 2.28 in
- Maximum Wire Size
- 4/0 AWG
- Flange Height
- 2.28 in
- Overall Length
- 2.66 in
Details
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Standards
- UL/CSA 1691
- NEMA Enclosure Rating
- 3R
- Voltage Rating
- 600V AC, 600V DC
- Gender
- Male
- End Type
- Taper Nose
- Maximum Operating Temperature
- 185 Degrees F
- Housing Color
- Yellow
- Current Rating
- 400 A
- Minimum Operating Temperature
- -40 Degrees F
- Housing Material
- Santoprene TPV
- Connection Orientation
- Angled
- Item
- Single Pole Receptacle
- Mounting Style
- Through Hole Mounting
- Terminal Connection Type
- Double Set Screw
- Series
- 16
- Flange Shape
- Square
- For Location
- Outdoor
Description

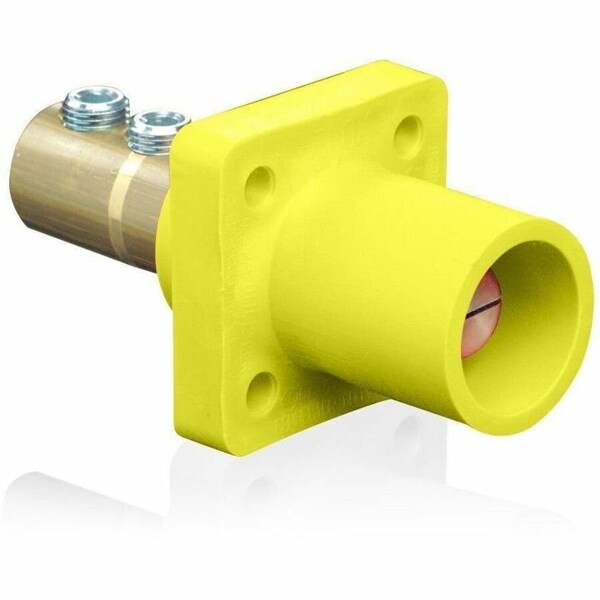

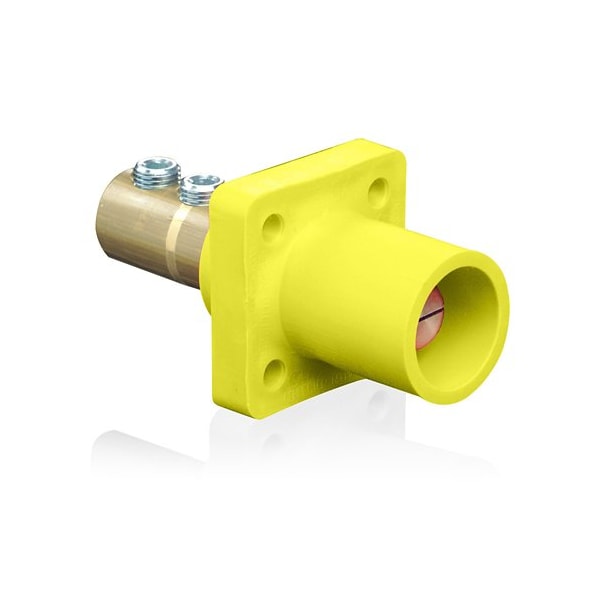

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Yellow, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Double Set Screw, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
