Plugs and Receptacles
- Mfr # 16R22-UE
- Zoro # G722587633
product price:Â
$
57.39
/ea
Key Features
Minimum Wire Size
2/0 AWG
Connection Orientation
Angled
Current Rating
400 A
Standards
UL/CSA 1691
Series
16
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R22-UE
- Zoro #
- G722587633
- UPC #
- 78477716762
- Country of Origin
- Mexico
- Connection Orientation
- Angled
- Current Rating
- 400 A
- Standards
- UL/CSA 1691
- Series
- 16
- Housing Material
- Santoprene TPV
- Item
- Single Pole Receptacle
- Mounting Style
- Through Hole Mounting
- End Type
- Taper Nose
- Flange Shape
- Square
- Contact Material
- Brass
- Minimum Operating Temperature
- -40 Degrees F
- NEMA Enclosure Rating
- 3R
- Housing Color
- Black
- Maximum Operating Temperature
- 185 Degrees F
- Gender
- Female
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Terminal Connection Type
- Double Set Screw
- Voltage Rating
- 600V AC, 600V DC
- For Location
- Outdoor
Description

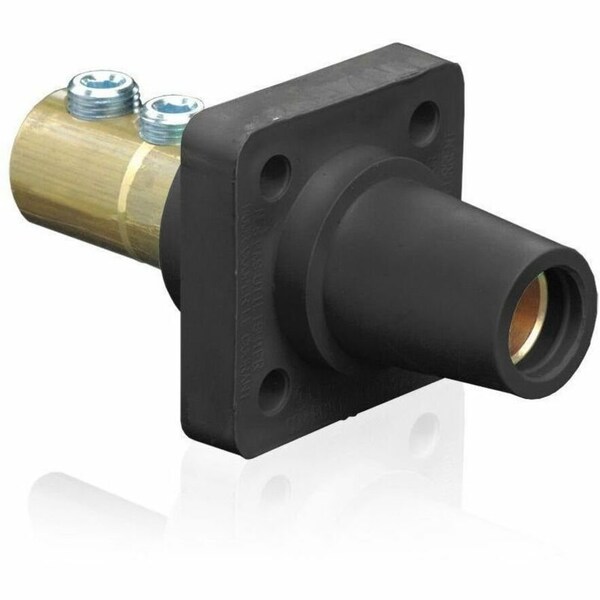

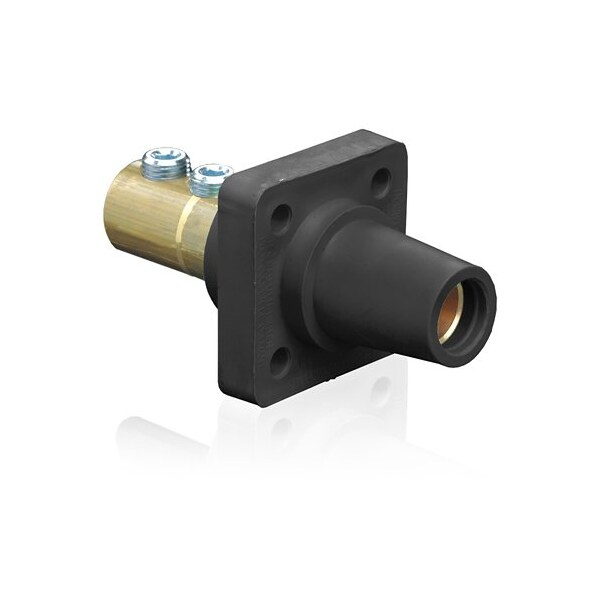

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Black, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Double Set Screw, For Location Outdoor
