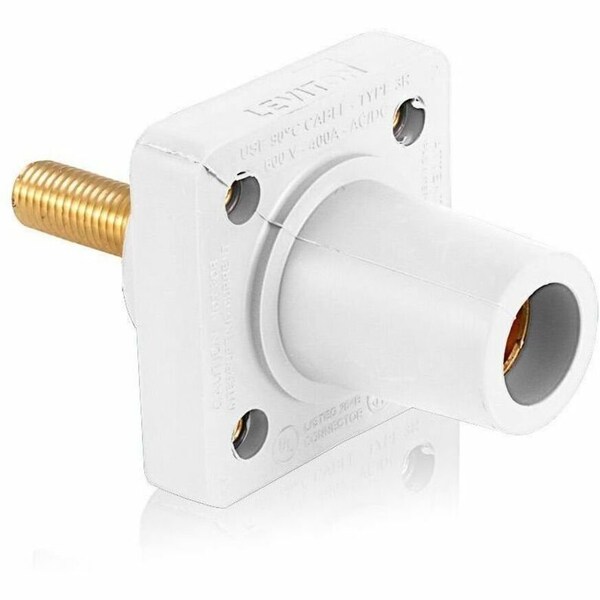

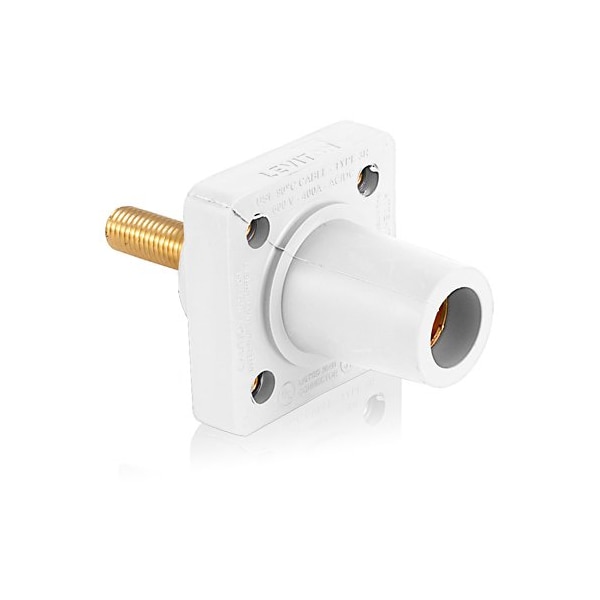

Plugs and Receptacles
Mfr # 16R26-1UW
Zoro # G522588144
product price:Â
$
32.85
/ea
Key Features
Overall Width
2.28 in
Mounting Style
Threaded Mounting
Overall Length
2.57 in
Maximum Wire Size
4/0 AWG
Gender
Female
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R26-1UW
- Zoro #
- G522588144
- UPC #
- 78477717974
- Country of Origin
- Mexico
- Mounting Style
- Threaded Mounting
- Gender
- Female
- End Type
- Taper Nose
- Maximum Operating Temperature
- 185 Degrees F
- Standards
- CSA, UL
- Terminal Connection Type
- Threaded Stud
- Voltage Rating
- 600V AC, 600V DC
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Housing Material
- Nylon
- Item
- Single Pole Receptacle
- NEMA Enclosure Rating
- 3R
- Series
- 16
- Current Rating
- 400 A
- Minimum Operating Temperature
- -40 Degrees F
- Connection Orientation
- Straight
- Housing Color
- White
- Flange Shape
- Square
- For Location
- Outdoor
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color White, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
