Plugs and Receptacles
Mfr # 16R23-1UB
Zoro # G922586870
product price:Â
$
43.69
/ea
Key Features
Overall Length
3.69 in
Maximum Wire Size
4/0 AWG
Gender
Male
Threaded Stud Termination Length
1.125 in
Flange Height
2.28 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R23-1UB
- Zoro #
- G922586870
- UPC #
- 78477717172
- Country of Origin
- Mexico
- Item
- Single Pole Receptacle
- Gender
- Male
- Flange Shape
- Square
- Housing Color
- Blue
- Current Rating
- 400 A
- For Location
- Outdoor
- End Type
- Taper Nose
- Mounting Style
- Through Hole Mounting
- Terminal Connection Type
- Threaded Stud
- Voltage Rating
- 600V AC, 600V DC
- Standards
- CSA, UL
- Contact Material
- Brass
- Housing Material
- Santoprene TPV
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Minimum Operating Temperature
- -40 Degrees F
- Connection Orientation
- Angled
- Series
- 16
- NEMA Enclosure Rating
- 3R
- Maximum Operating Temperature
- 185 Degrees F
Description

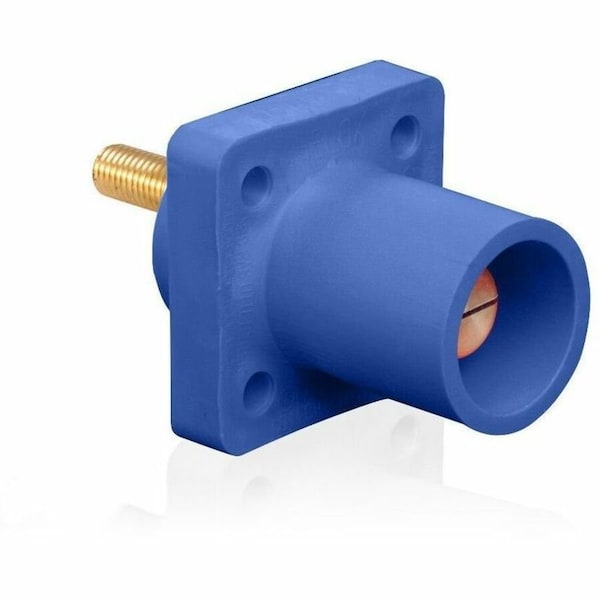

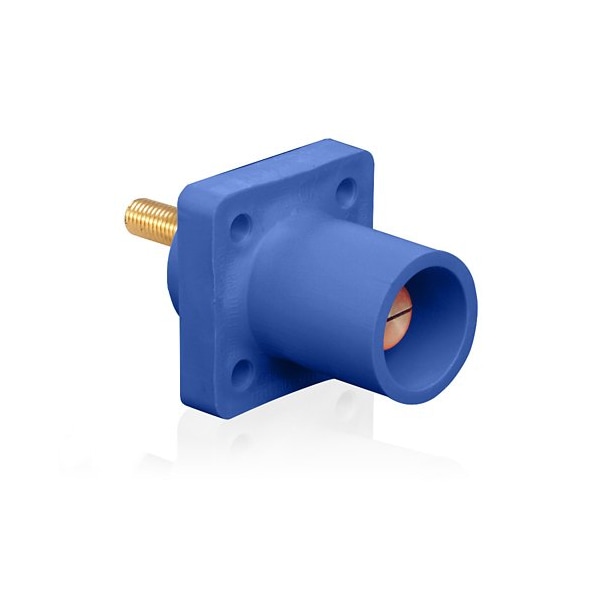

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Blue, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
