Plugs and Receptacles
Mfr # 16R26-1UY
Zoro # G922588089
product price:Â
$
45.79
/ea
Key Features
Overall Length
2.57 in
Housing Material
Nylon
Contact Material
Brass
Gender
Female
Maximum Wire Size
4/0 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R26-1UY
- Zoro #
- G922588089
- UPC #
- 78477718100
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 2.57 in
- Maximum Wire Size
- 4/0 AWG
- Flange Width
- 2.28 in
- Threaded Stud Termination Length
- 1.125 in
- Stud Thread Size
- 5/16"-18
- Flange Height
- 2.28 in
- Minimum Wire Size
- 2 AWG
- Overall Width
- 2.28 in
- Wire Rope Length
- 2.57 in
- Length
- 2.57 in
Description

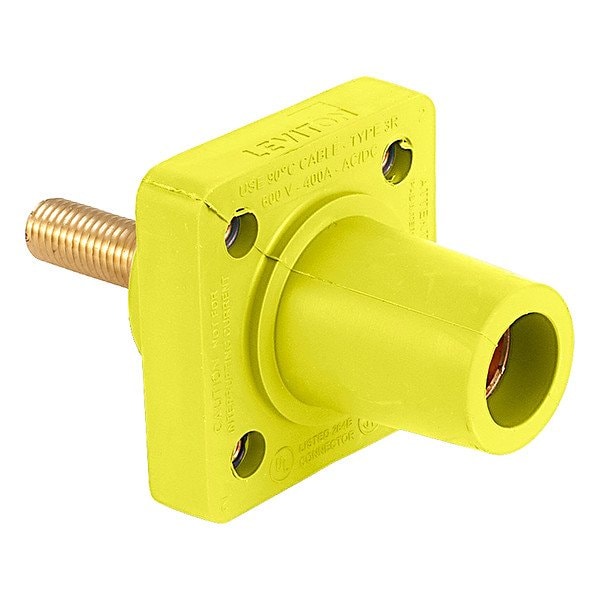

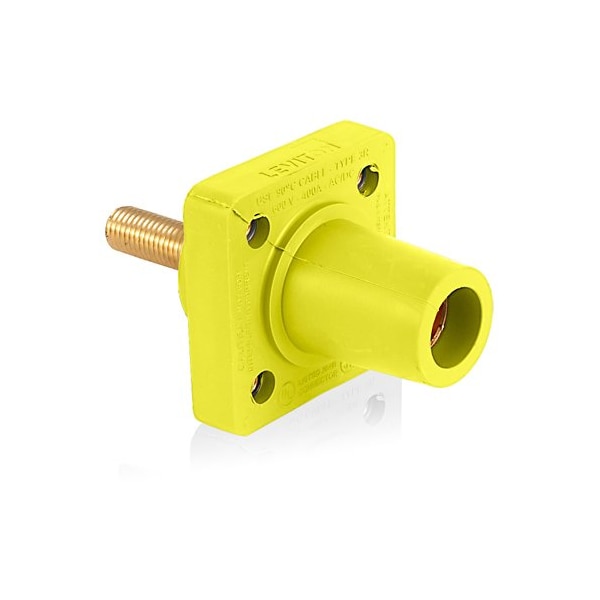

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Yellow, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
