Plugs and Receptacles
Mfr # 16R27-UY
Zoro # G222588154
product price:Â $82.49
/eaKey Features
For Location
Outdoor
Flange Shape
Square
Maximum Wire Size
4/0 AWG
Housing Color
Yellow
Voltage Rating
600V AC, 600V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R27-UY
- Zoro #
- G222588154
- UPC #
- 78477611111
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 4/0 AWG
- Minimum Wire Size
- 2/0 AWG
Details
- For Location
- Outdoor
- Flange Shape
- Square
- Housing Color
- Yellow
- Voltage Rating
- 600V AC, 600V DC
- NEMA Enclosure Rating
- 3R
- Mounting Style
- Through Hole Mounting
- End Type
- Taper Nose
- Standards
- CSA, UL
- Gender
- Male
- Series
- 16
- Minimum Operating Temperature
- -40 Degrees F
- Item
- Single Pole Receptacle
- Housing Material
- Santoprene TPV
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Current Rating
- 400 A
- Maximum Operating Temperature
- 185 Degrees F
- Terminal Connection Type
- Double Set Screw
- Connection Orientation
- Angled
Description

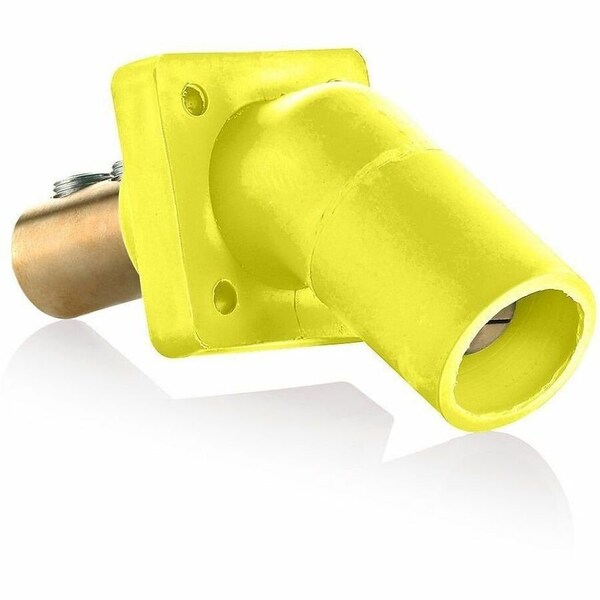

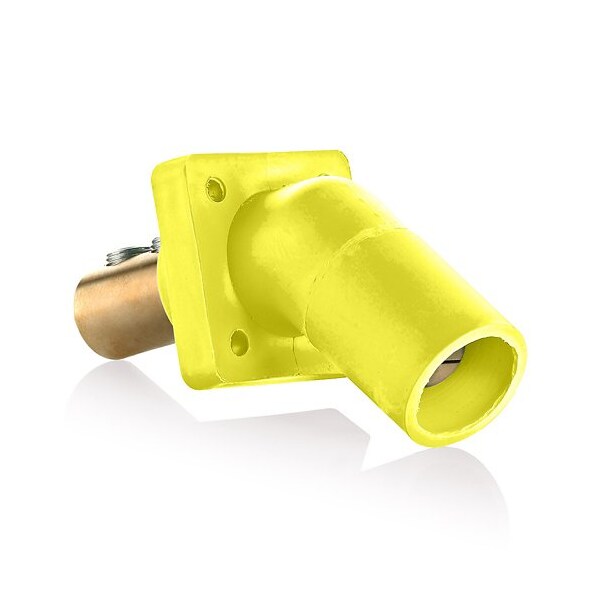

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Yellow, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Double Set Screw, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Location Surface
