Plugs and Receptacles
Mfr # 16R29-1UY
Zoro # G222587515
product price:Â
$
69.89
/ea
Key Features
Mounting Style
Through Hole Mounting
Maximum Operating Temperature
185 Degrees F
Connection Orientation
Angled
Flange Shape
Square
Series
16
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R29-1UY
- Zoro #
- G222587515
- UPC #
- 78477405888
- Country of Origin
- Mexico
Dimensions
- Threaded Stud Termination Length
- 1.125 in
- Maximum Wire Size
- 4/0 AWG
- Minimum Wire Size
- 2 AWG
Details
- Mounting Style
- Through Hole Mounting
- Maximum Operating Temperature
- 185 Degrees F
- Connection Orientation
- Angled
- Flange Shape
- Square
- Item
- Single Pole Receptacle
- Series
- 16
- Housing Material
- Santoprene TPV
- Voltage Rating
- 600V AC, 600V DC
- NEMA Enclosure Rating
- 3R
- Current Rating
- 400 A
- Gender
- Male
- Standards
- UL/CSA 1691
- End Type
- Taper Nose
- For Location
- Outdoor
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Minimum Operating Temperature
- -40 Degrees F
- Terminal Connection Type
- Threaded Stud
- Housing Color
- Yellow
Description

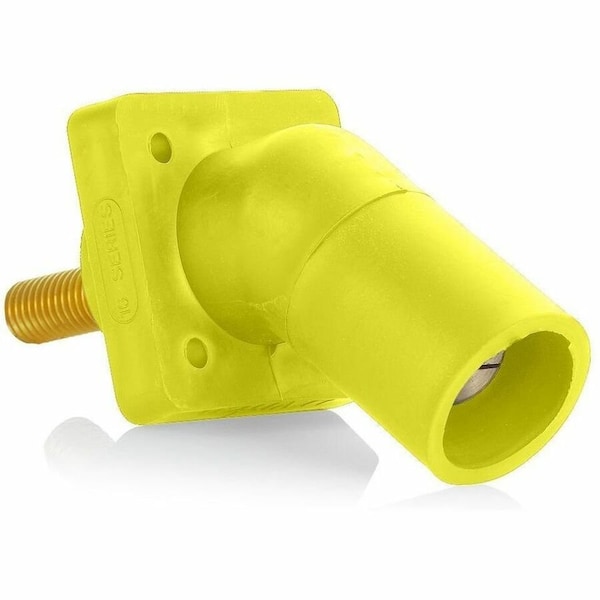

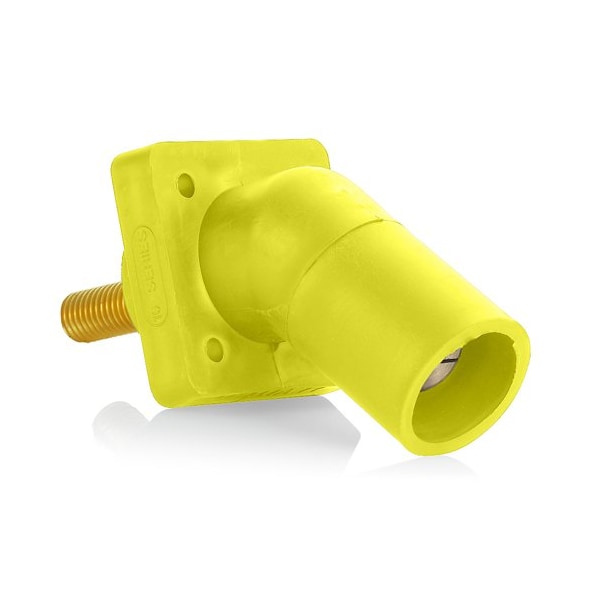

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Yellow, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Location Surface
