Plugs and Receptacles
Mfr # 16R30-UG
Zoro # G622587573
product price:Â $69.49
/eaKey Features
Maximum Wire Size
4/0 AWG
Maximum Operating Temperature
185 Degrees F
Threaded Stud Termination Length
1.125 in
Contact Material
Brass
Flange Width
2.29 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
16R30-UG
Zoro #
G622587573
UPC #
78477718438
Country of Origin
Mexico
Dimensions
Maximum Wire Size
4/0 AWG
Threaded Stud Termination Length
1.125 in
Flange Width
2.29 in
Minimum Wire Size
2 AWG
Flange Height
2.29 in
Overall Length
4.37 in
Overall Width
2.29 in
Description

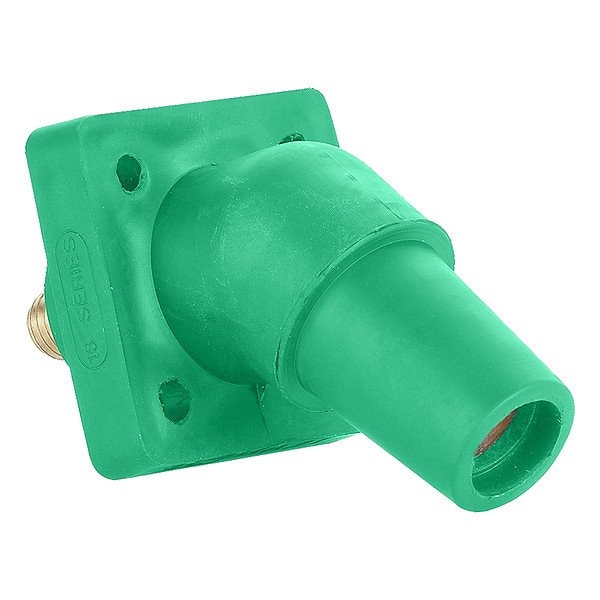

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Green, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.29 in, Flange Shape Square, Flange Width 2.29 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
