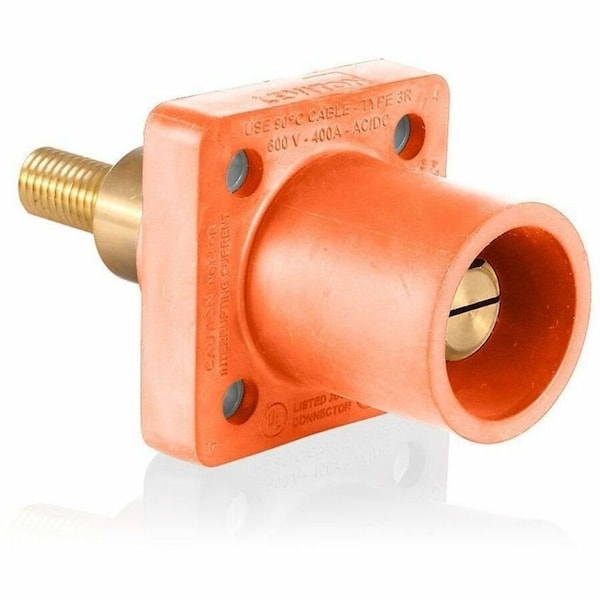

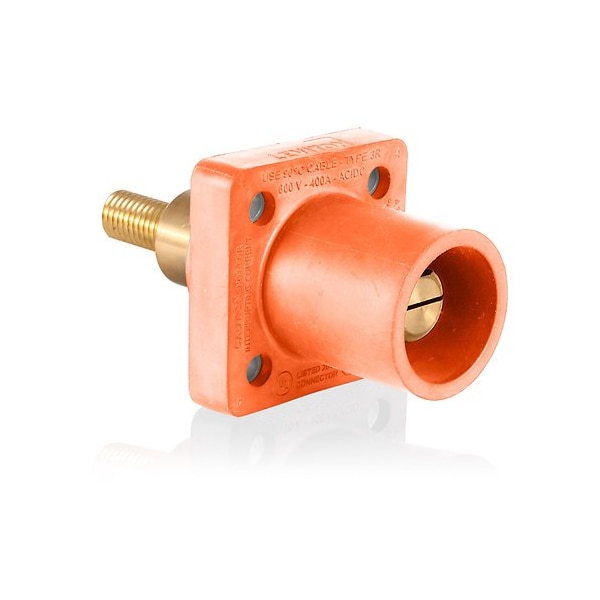

Plugs and Receptacles
- Mfr # 16R31-XO
- Zoro # G622588136
product price:Â
$
47.39
/ea
Key Features
Housing Color
Orange
Standards
UL/CSA 1691
Terminal Connection Type
Threaded Stud
NEMA Enclosure Rating
3R
Gender
Male
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R31-XO
- Zoro #
- G622588136
- UPC #
- 78477939130
- Country of Origin
- Mexico
- Housing Color
- Orange
- Standards
- UL/CSA 1691
- Terminal Connection Type
- Threaded Stud
- NEMA Enclosure Rating
- 3R
- Gender
- Male
- Current Rating
- 400 A
- Minimum Operating Temperature
- -40 Degrees F
- Connection Orientation
- Straight
- Housing Material
- Nylon
- Maximum Operating Temperature
- 185 Degrees F
- Flange Shape
- Square
- Series
- 16
- Mounting Style
- Threaded Mounting
- Item
- Single Pole Receptacle
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Voltage Rating
- 600V AC, 600V DC
- Contact Material
- Brass
- End Type
- Taper Nose
- For Location
- Outdoor
Dimensions
- Stud Thread Size
- 5/16"-18
- Threaded Stud Termination Length
- 1.25 in
- Minimum Wire Size
- 2 AWG
- Maximum Wire Size
- 4/0 AWG
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Orange, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
