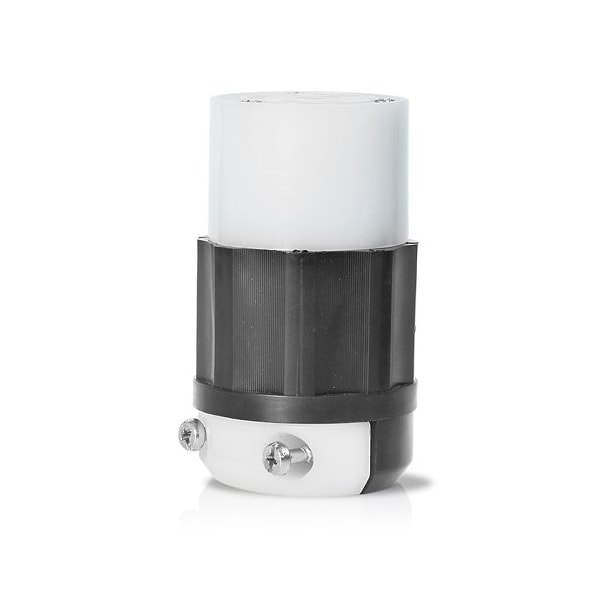

Shop LEVITON

Plugs and Receptacles

  • Mfr # 2443

  • Zoro # G022586664

product price:  $79.89
/ea

Key Features

NEMA Receptacle Configuration
L18-20R
Minimum Wire Size
14 AWG
Voltage Rating
120/208V AC
Series
Insulgrip
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2443
Zoro #
G022586664
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Length
3.53 in
For Minimum Cable Diameter
0.3 in
For Maximum Cable Diameter
0.72 in
Outside Diameter
2.08 in
Face Diameter
2.08 in
Maximum Wire Size
10 AWG
Wire Rope Length
3.53 in

Details

NEMA Receptacle Configuration
L18-20R
Voltage Rating
120/208V AC
Series
Insulgrip
Phase
Single
Minimum Operating Temperature
-40 Degrees F
Power and Ground Indicating Light
No
Grade
Federal Specification
For Environment
Industrial
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Number of Poles
4
Housing Color
Black, White
Midget Locking
No
UL 94 Flammability Rating
HB
Wire Connection Type
Screw Terminals
Housing Material
Nylon
Contact Material
Brass
Current Rating
20 A
Shrouded
No
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Horsepower Rating
1 hp
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13393, UL Fed Spec WC-596 File E13393
Number of Wires
4
IP Rating
Not Rated
Item
Locking Connector
Features
One Piece Contacts Reduce Friction and Overheating
Market
Industrial
Grounding
Non-Grounded
Connection Orientation
Straight

Description

Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L18-20R, Number of Poles 4, Number of Wires 4, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Face Diameter 2.08 in
