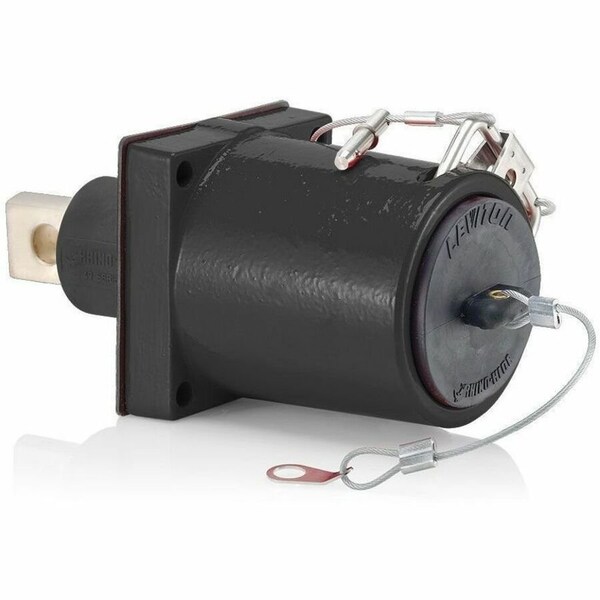

Plugs and Receptacles
Mfr # 49FR1-XE
Zoro # G922587211
product price:Â $1,143.99
/ea
Free Shipping & Returns
Key Features
End Type
45 Degrees Clevis Pin
Flange Width
4.49 in
NEMA Enclosure Rating
3R
Series
49
Overall Width
4.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 49FR1-XE
- Zoro #
- G922587211
- UPC #
- 78477386521
- Country of Origin
- Mexico
Dimensions
- Flange Width
- 4.49 in
- Overall Width
- 4.49 in
- Flange Height
- 4.49 in
- Maximum Wire Size
- 777 kcmil
- Minimum Wire Size
- 313 kcmil
- Overall Length
- 8.84 in
- Wire Rope Length
- 8.84 in
Details
- End Type
- 45 Degrees Clevis Pin
- NEMA Enclosure Rating
- 3R
- Series
- 49
- Maximum Operating Temperature
- 275 Degrees F
- Current Rating
- 1,135 A
- Standards
- UL Recognized
- Flange Shape
- Square
- Minimum Operating Temperature
- -76 Degrees F
- Item
- Single Pole Receptacle
- Resistance Properties
- Corrosion Resistant
- Gender
- Female
- Housing Color
- Black
- Voltage Rating
- 1000V AC, 1000V DC
- Terminal Connection Type
- One-Hole Bus Bar
- Connection Orientation
- Straight
- Housing Material
- Thermoplastic Elastomer
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color Black, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type One-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
