Shop LEVITON
See all product information

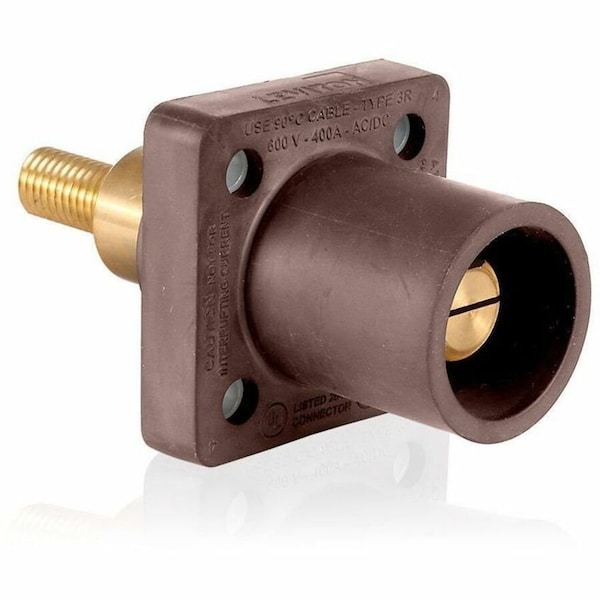

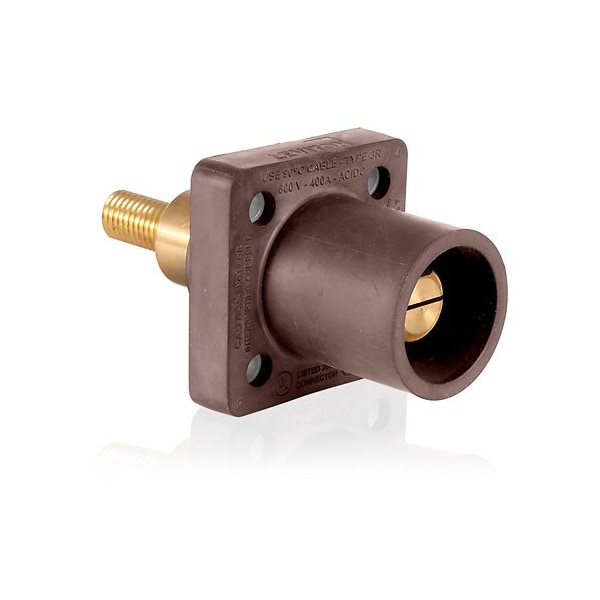

Plugs and Receptacles
Mfr # 16R31-XH
Zoro # G222587362
product price:Â $47.39
/eaKey Features
Housing Color
Brown
Mounting Style
Threaded Mounting
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Terminal Connection Type
Threaded Stud
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
16R31-XH
Zoro #
G222587362
UPC #
78477939079
Country of Origin
Mexico
Dimensions
Threaded Stud Termination Length
1.25 in
Minimum Wire Size
2 AWG
Maximum Wire Size
4/0 AWG
Stud Thread Size
5/16"-18
Details
Housing Color
Brown
Mounting Style
Threaded Mounting
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Terminal Connection Type
Threaded Stud
For Location
Outdoor
Standards
UL/CSA 1691
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Voltage Rating
600V AC, 600V DC
Series
16
End Type
Taper Nose
Connection Orientation
Straight
Current Rating
400 A
Gender
Male
Maximum Operating Temperature
185 Degrees F
Flange Shape
Square
Item
Single Pole Receptacle
NEMA Enclosure Rating
3R
Contact Material
Brass
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Brown, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
