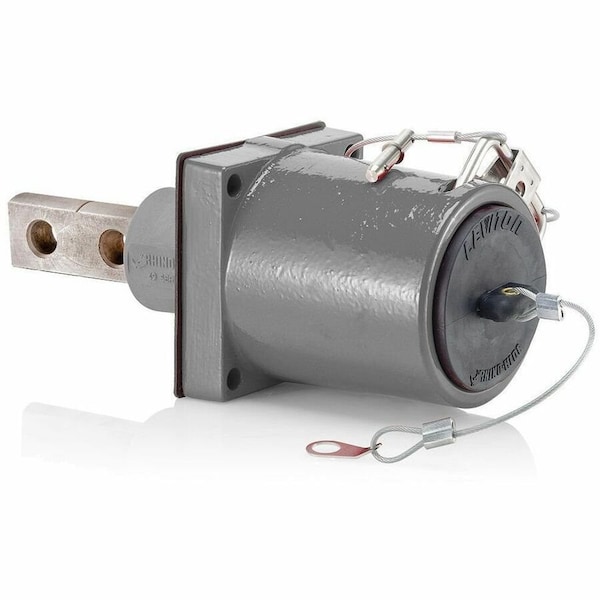

Plugs and Receptacles
Mfr # 49FR2-XGY
Zoro # G522587154
product price:Â $1,234.99
/ea
Free Shipping & Returns
Key Features
Connection Orientation
Straight
Overall Width
4.49 in
End Type
45 Degrees Clevis Pin
Maximum Wire Size
777 kcmil
Resistance Properties
Corrosion Resistant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 49FR2-XGY
- Zoro #
- G522587154
- UPC #
- 78477391334
- Country of Origin
- Mexico
Dimensions
- Overall Width
- 4.49 in
- Maximum Wire Size
- 777 kcmil
- Overall Length
- 10.52 in
- Flange Height
- 4.49 in
- Minimum Wire Size
- 313 kcmil
- Flange Width
- 4.49 in
- Wire Rope Length
- 10.52 in
Details
- Connection Orientation
- Straight
- End Type
- 45 Degrees Clevis Pin
- Resistance Properties
- Corrosion Resistant
- Series
- 49
- Item
- Single Pole Receptacle
- Mounting Style
- Through Hole Mounting
- Current Rating
- 1,135 A
- Terminal Connection Type
- Two-Hole Bus Bar
- Housing Color
- Gray
- NEMA Enclosure Rating
- 3R
- Standards
- UL Recognized
- Gender
- Female
- Voltage Rating
- 1000V AC, 1000V DC
- Housing Material
- Thermoplastic Elastomer
- Flange Shape
- Square
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color Gray, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Mounting Location Surface
