Plugs and Receptacles
Mfr # 49MR2-XB
Zoro # G222587331
product price:Â $1,369.99
/ea
Free Shipping & Returns
Key Features
Flange Width
4.49 in
Overall Length
10.53 in
Resistance Properties
Corrosion Resistant
Minimum Wire Size
313 kcmil
Flange Height
4.49 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 49MR2-XB
- Zoro #
- G222587331
- UPC #
- 78477386507
- Country of Origin
- Mexico
Dimensions
- Flange Width
- 4.49 in
- Overall Length
- 10.53 in
- Minimum Wire Size
- 313 kcmil
- Flange Height
- 4.49 in
- Overall Width
- 4.49 in
- Maximum Wire Size
- 777 kcmil
- Wire Rope Length
- 10.53 in
Details
- Resistance Properties
- Corrosion Resistant
- NEMA Enclosure Rating
- 3R
- Housing Material
- Thermoplastic Elastomer
- Terminal Connection Type
- Two-Hole Bus Bar
- End Type
- 45 Degrees Clevis Pin
- Mounting Style
- Through Hole Mounting
- Voltage Rating
- 1000V AC, 1000V DC
- Item
- Single Pole Receptacle
- Housing Color
- Blue
- Connection Orientation
- Straight
- Standards
- UL Recognized
- Current Rating
- 1,135 A
- Minimum Operating Temperature
- -76 Degrees F
- Gender
- Male
- Flange Shape
- Square
- Maximum Operating Temperature
- 275 Degrees F
- Series
- 49
Description

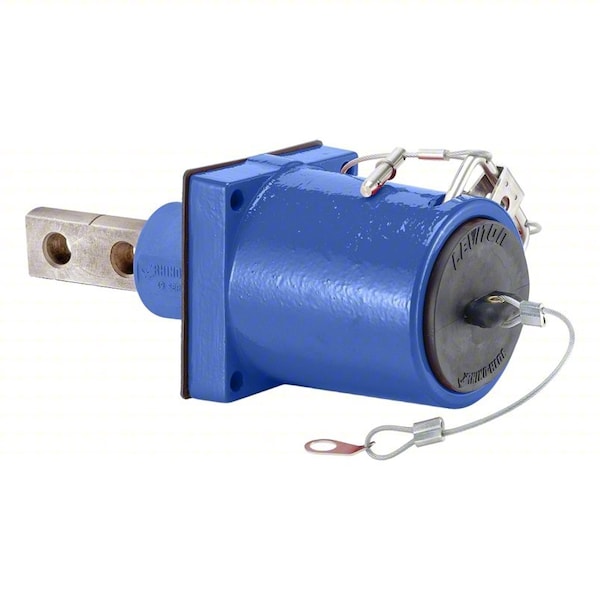

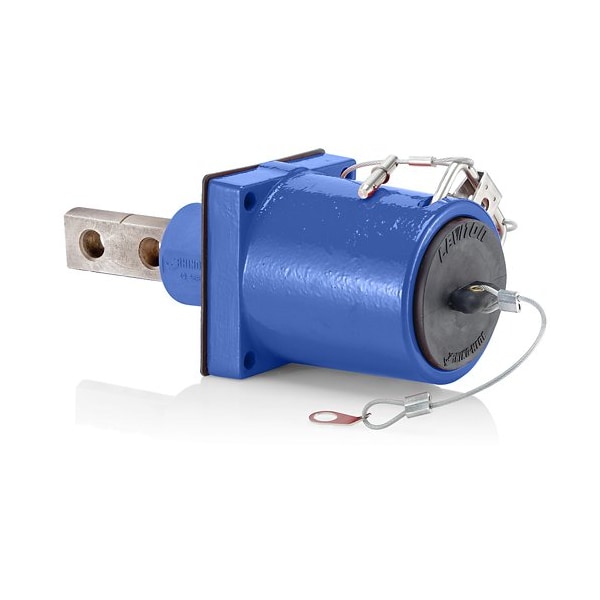

Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Male, Housing Color Blue, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
