Shop LEVITON

Plugs and Receptacles

  • Mfr # 560C7WLEV

  • Zoro # G922586986

product price:  $601.99
/ea
Free Shipping & Returns

Key Features

Housing Color
Red
Number of Poles
4
Number of Wires
5
Phase
Three
IP Rating
IP66, IP67, IP69K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
560C7WLEV
Zoro #
G922586986
UPC #
78477251614
Country of Origin
Mexico

Dimensions

Maximum Wire Size
2 AWG
Minimum Wire Size
8 AWG
Overall Length
11.01 in
Outside Diameter
4.1 in
Face Diameter
4.1 in
Wire Rope Length
11.01 in

Details

Current Rating
60 A
Housing Color
Red
Number of Poles
4
Number of Wires
5
Phase
Three
IP Rating
IP66, IP67, IP69K
Standards
CSA, IEC 60309-1, IEC 60309-2, NOM-ANCE Requirements, UL 1682, UL 1686
Power Indicating Light
No
Grounding
Grounded
Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
12, 3R, 4X, 6P
UL 94 Flammability Rating
V-0
Hazardous Location Specification
Not Rated
Market
Industrial
Horsepower Rating
15 hp
Contact Material
Nickel-Plated Brass
Reverse Service
No
For Location
Outdoor
Features
Front Housing Features Screwless Assembly, Private Labeling Capabilities
For Environment
Industrial
Housing Material
Nylon
Item

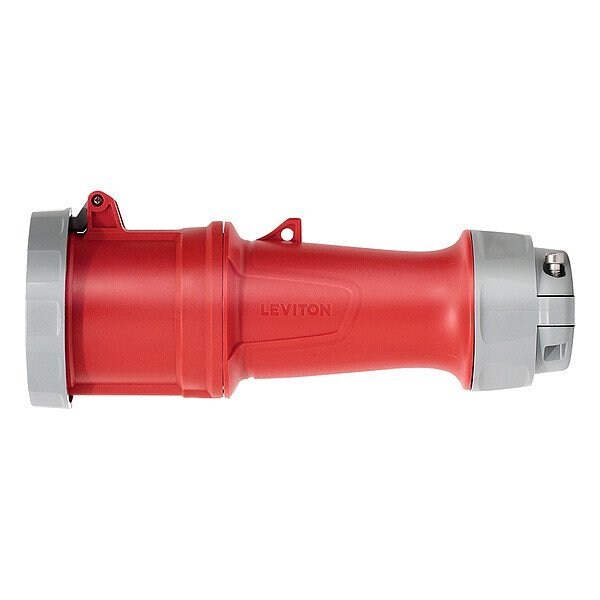

Pin and Sleeve Connector
Series
LEV
Voltage Rating
277/480V AC
Wire Connection Type
Screw Terminals

Description

Pin and Sleeve Connector, Current Rating 60 A, Grounding Style IEC, Horsepower Rating 15 hp, Housing Color Red, IP Rating IP66, IP67, IP69K, Number of Poles 4, Number of Wires 5, Phase Three, Resistance Properties Corrosion Resistant, Switch Rated No, Voltage Rating 277/480V AC, Face Diameter 4.1 in, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Nylon, Market Industrial, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, NEMA Enclosure Rating 12, 3R, 4X, 6P
