Shop LEVITON

Plugs and Receptacles

  • Mfr # CS8175

  • Zoro # G922588140

product price:  $143.99
/ea
Free Shipping & Returns

Key Features

Face Diameter
3.5 in
Housing Material Finish
Zinc Plated
Overall Depth
2.72 in
Resistance Properties
Corrosion Resistant, Heat Resistant, Impact Resistant
IP Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8175
Zoro #
G922588140
UPC #
78477326374
Country of Origin
Mexico

Dimensions

Face Diameter
3.5 in
Overall Depth
2.72 in
Flange Width
3.8 in
Flange Diameter
3.5 in
Maximum Wire Size
4 AWG
Mount Hole Center-to-Center Width
1.1 in
Flange Height
2.75 in
Mount Hole Center-to-Center Height
3.82 in
Minimum Wire Size
10 AWG

Details

Housing Material Finish
Zinc Plated
Resistance Properties
Corrosion Resistant, Heat Resistant, Impact Resistant
IP Rating
Not Rated
Midget Locking
No
Wire Connection Type
Screw Terminals
Current Rating
50 A
NEMA Enclosure Rating
Not Rated
NEMA Plug Configuration
Non-NEMA
Market
Industrial
Number of Outlets
1
Maximum Operating Temperature
167 Degrees F
Flange Shape
Round
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Blade Material
Nickel-Plated Brass
Mount Type
Flush
For Environment
Industrial
Includes
Mounting Hardware
Voltage Rating
480V AC
Number of Gangs
1
Housing Material
Nylon, Steel
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Series
Insulgrip
Connection Orientation
Straight
Phase
Three
Number of Poles
3

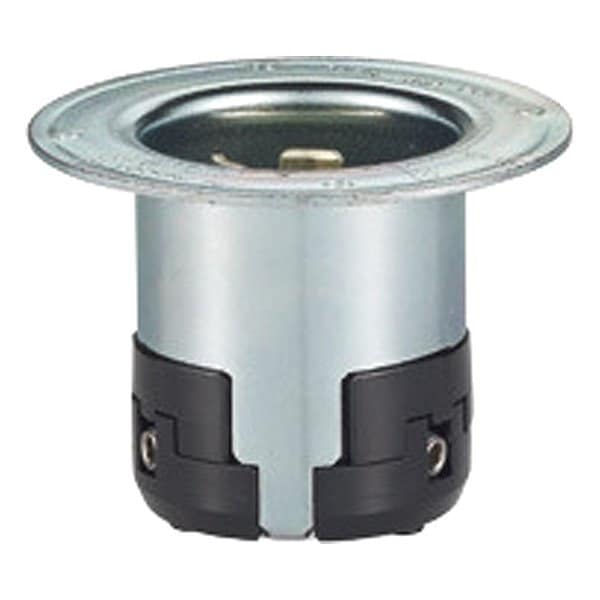

Item
Locking Inlet
Grade
Federal Specification
Horsepower Rating
7 1/2 hp
Housing Color
Gray
Features
Accepts Slotted and Phillips Head Drivers
Number of Blades
4
Grounding
Grounded
Shrouded
Yes
Polarized
Yes
Flange Material
Steel
Flange Type
Flanged

Description

Locking Inlet, Cover Type No Cover, Current Rating 50 A, Flange Material Steel, Flange Shape Round, Housing Color Gray, IP Rating Not Rated, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Plug Configuration Non-NEMA, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Corrosion Resistant, Heat Resistant, Impact Resistant, Voltage Rating 480V AC, Wiring Style Standard, Face Diameter 3.5 in, Flange Diameter 3.5 in, Flange Height 2.75 in, Flange Type Flanged
