Shop LEVITON

Plugs and Receptacles

  • Mfr # LDS30-AX

  • Zoro # G422586882

product price:
$
314.99
/ea
Free Shipping & Returns

Key Features

Series
Powerswitch
NEMA Enclosure Rating
12, 13, 3R, 4, 4X, 6, 6P
Features
On/Off Indicator
Neutral Assembly Included
Yes
Horsepower @ 480V AC
20 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LDS30-AX
Zoro #
G422586882
UPC #
78477768020
Country of Origin
Mexico
Series
Powerswitch
NEMA Enclosure Rating
12, 13, 3R, 4, 4X, 6, 6P
Features
On/Off Indicator
Neutral Assembly Included
Yes
Horsepower @ 480V AC
20 hp
Horsepower @ 240V AC
10 hp
Duty
Medium Duty
For Fuse Class
Class J
UL 508 Certification
Yes
Housing Material
Plastic
Voltage
600V AC
Resistance Properties
Dust-Tight, High Temperature Washdown, Submersible, Suitable for High Pressure, UV Resistant, Watertight
Item
Disconnect Switch
Number of Locks
0
Protection Method
Non-Fusible
Mounting Style
Surface Mount; Wall Mount
Number of Poles
1
Horsepower @ 600V AC
25 hp
Standards
CE, cULus, IEC, ISO, NEMA, NOM, NSF
Current Rating
30 A
Environment
Indoor/Outdoor
Handle Color
Red
Number of Wires
8
IP Rating
IP66; IP67; IP68; IP69; IP69K
Phase
Single or Three

Description

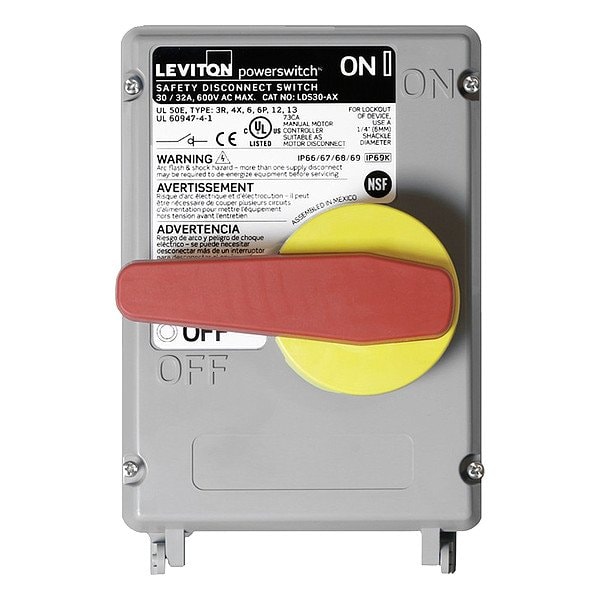

Disconnect Switch, Current Rating 30 A, Depth 3 7/8 in, Duty Medium Duty, Environment Indoor/Outdoor, Features On/Off Indicator, For Fuse Class Class J, Handle Color Red, Height 7 in, Horsepower @ 240V AC 10 hp, Horsepower @ 480V AC 20 hp, Horsepower @ 600V AC 25 hp, Housing Material Plastic, IP Rating IP66; IP67; IP68; IP69; IP69K, Mounting Style Surface Mount; Wall Mount, NEMA Enclosure Rating 12, 13, 3R, 4, 4X, 6, 6P, Neutral Assembly Included Yes, Number of Locks 0
