Plugs and Receptacles

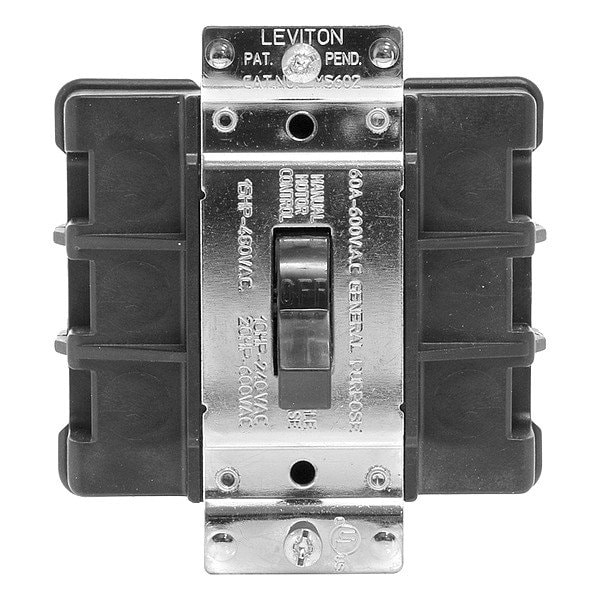

Mfr # MS602-BW
Zoro # G522586997
product price:Â
$
123.99
/ea
Free Shipping & Returns
Key Features
Overall Width
3.41 in
Current AC
60 A
Resistance Properties
Chemical Resistant, Impact Resistant, Temperature Resistant
Phase
Single
Maximum Voltage Rating
600V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MS602-BW
- Zoro #
- G522586997
- UPC #
- 78477073735
- Country of Origin
- Mexico
Dimensions
- Overall Width
- 3.41 in
- Overall Height
- 3.75 in
- Overall Depth
- 1.7 in
Details
- Current AC
- 60 A
- Resistance Properties
- Chemical Resistant, Impact Resistant, Temperature Resistant
- Phase
- Single
- Maximum Voltage Rating
- 600V AC
- Starter Style
- NEMA
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 140 Degrees F
- Contact Material
- Silver Alloy
- Terminal Connection Type
- Screw Terminals
- Item
- Manual Motor Controller
- Mounting Style
- Through Panel
- Horsepower @ Single Phase - 240V AC
- 10 hp
- Hazardous Location Specification
- Not Rated
- Number of Poles
- 2
- Includes Pilot Light
- No
- Horsepower @ 230V DC
- 10 hp
- Operator
- Toggle Switch
- NEMA Enclosure Rating
- 1, 3R, 4X
- Standards
- ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL Listed
- Series
- Powerswitch
Description
Manual Motor Controller, Current AC 60 A, Hazardous Location Specification Not Rated, Horsepower @ Single Phase - 240V AC 10 hp, Includes Pilot Light No, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter Not Applicable, Hub Type Not Applicable, Maximum Voltage Rating 600V AC, Mounting Style Through Panel, NEMA Enclosure Rating 1, 3R, 4X, Maximum Operating Temperature 140 Degrees F
