Shop LEVITON

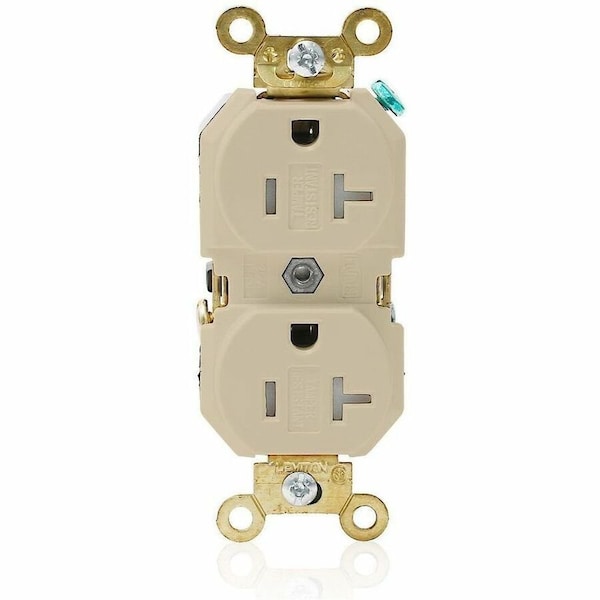

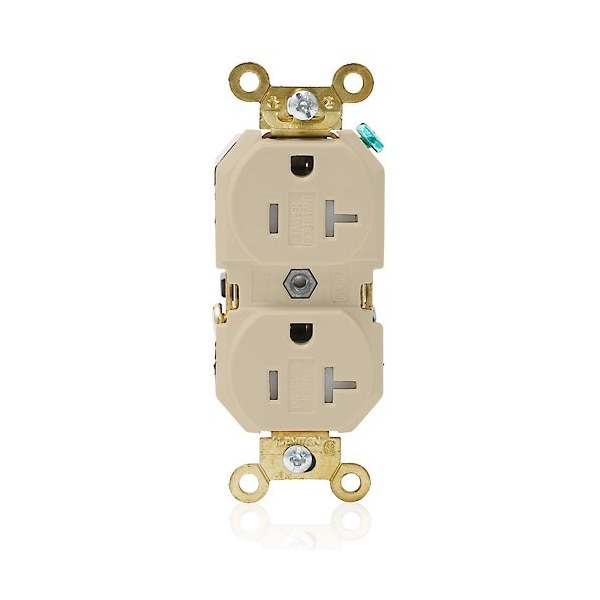

PlugsandRcptcls, 20A, 125VAC, Ivory, Nylon

  • Mfr # 5362-SGI
  • Zoro # G022587722
product price:
$
23.19
/ea

Key Features

Connection Orientation
Straight
Resistance Properties
Tamper Resistant
Contact Material
Brass
Shrouded
No
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-SGI
Zoro #
G022587722
UPC #
78477868744
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.3 in

Details

Connection Orientation
Straight
Resistance Properties
Tamper Resistant
Contact Material
Brass
Shrouded
No
Voltage Rating
125V AC
Mount Type
Flush
Receptacle Type
Duplex
Housing Color
Ivory
Minimum Operating Temperature
-40 Degrees C
Wiring Method
Back/Side
AFCI
No
Wire Connection Type
Screw Terminals
Number of Gangs
1
Features
Smooth Face
Polarized
Yes
NEMA Receptacle Configuration
5-20R
Grounding
Grounded
NEMA Enclosure Rating
Not Rated
Item
Plugs and Receptacles
Number of Poles
2
Horsepower Rating
1 hp
Grade
General Use
Number of Wall Plates Included
0
Number of Wires
3
Standards
CSA, FULS Marking, UL
Current Rating
20 A
Number of Outlets
2
For Environment
Food and Beverage, Oily/Greasy
UL 94 Flammability Rating
V-2
GFCI
No
Housing Material
Nylon
IP Rating
Not Rated
Surge Protection
No
Maximum Operating Temperature
75 Degrees C
Cover Type
No Cover
Market
Industrial
Flange Type
Non-Flanged
Phase
Single

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
