Shop LEVITON

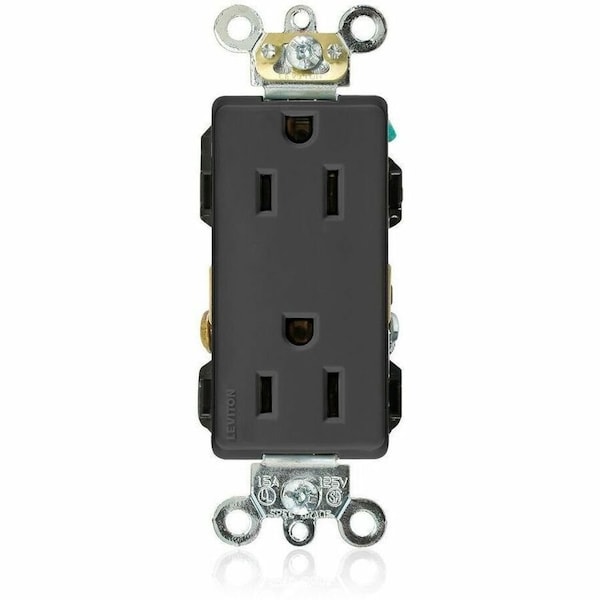

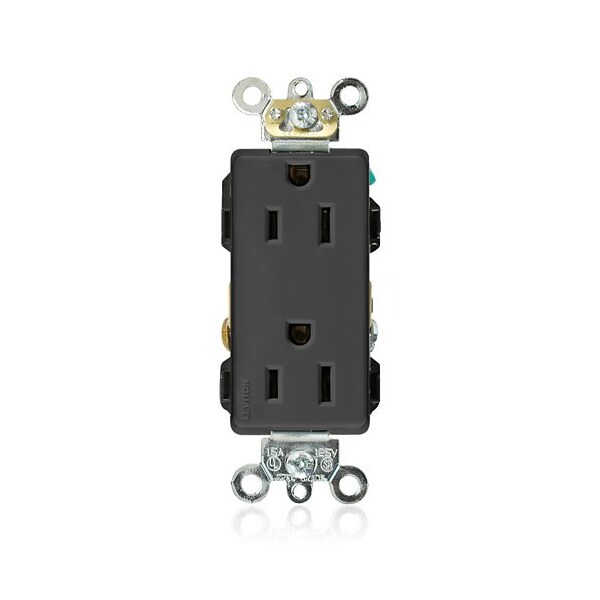

PlugsandReceptacles, 15A, 125VAC, Blk, Nylon

  • Mfr # 16262-E

  • Zoro # G222586808

product price:
$
10.69
/ea

Key Features

Polarized
Yes
Shrouded
No
Number of Outlets
2
Market
Industrial
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16262-E
Zoro #
G222586808
UPC #
78477867273
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Width
1.3 in

Details

Polarized
Yes
Shrouded
No
Number of Outlets
2
Market
Industrial
Phase
Single
IP Rating
Not Rated
UL 94 Flammability Rating
V-2
Surge Protection
No
Resistance Properties
Tamper Resistant
NEMA Enclosure Rating
Not Rated
GFCI
No
Maximum Operating Temperature
60 Degrees C
Number of Wall Plates Included
0
Current Rating
15 A
Grounding
Grounded
Housing Color
Black
Features
Smooth Face
Wiring Method
Back/Side
NEMA Receptacle Configuration
5-15R
Number of Gangs
1
Receptacle Type
Duplex
Housing Material
Nylon
For Environment
Food and Beverage, Oily/Greasy
Horsepower Rating
1/2 hp
Item
Plugs and Receptacles
Cover Type
No Cover
Wire Connection Type
Screw Terminals
Grade
General Use
AFCI
No
Mount Type
Flush
Standards
CSA, FULS Marking, UL
Number of Wires
3
Number of Poles
2
Voltage Rating
125V AC
Minimum Operating Temperature
-40 Degrees C
Connection Orientation
Straight
Contact Material
Brass
Flange Type
Non-Flanged

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
