Shop LEVITON

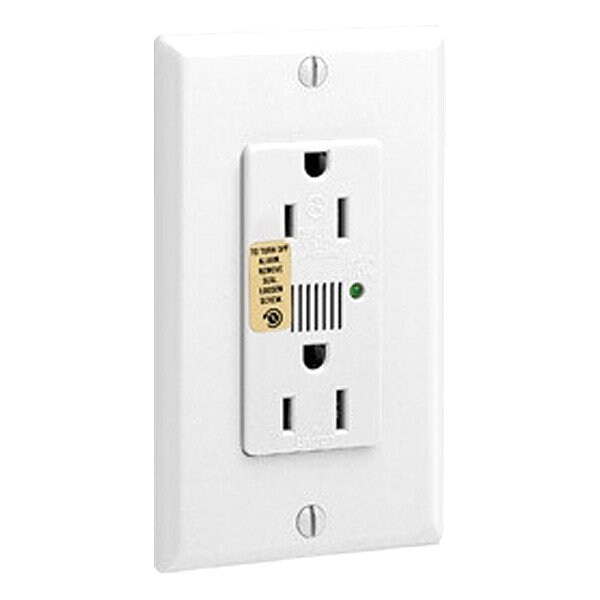

PlugsandReceptacles, 15A, 125VAC, Wht, Nylon

  • Mfr # 7280-W

  • Zoro # G422586288

product price:
$
71.49
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

UL 94 Flammability Rating
V-2
Market
Commercial
Housing Color
White
Number of Gangs
1
Face Plate Height
2.8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7280-W
Zoro #
G422586288
UPC #
78477102213
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Overall Depth
1.5 in
Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

UL 94 Flammability Rating
V-2
Market
Commercial
Housing Color
White
Number of Gangs
1
Features
Audible Alarm, Indicator Light
Maximum Surge Current
27 kA
Current Rating
15 A
Grounding
Grounded
Number of Outlets
2
Polarized
Yes
Includes
Wallplate
Maximum Operating Temperature
60 Degrees C
Number of Wall Plates Included
0
AFCI
No
Mount Type
Flush
Wiring Method
Back/Side
Grade
General Use
Flange Type
Non-Flanged
Minimum Operating Temperature
-40 Degrees C
Number of Wires
3
Contact Material
Brass
GFCI
No
Standards
CSA, FULS Marking, UL
Connection Orientation
Straight
Voltage Rating
125V AC
Shrouded
No
Horsepower Rating
1 hp
IP Rating
Not Rated
For Environment
Food and Beverage, Oily/Greasy
Phase
Single
Housing Material
Nylon
Number of Poles
2
Cover Type
Screw-On Cover
NEMA Receptacle Configuration
5-15R
Surge Protection
Yes
Wire Connection Type
Screw Terminals
Receptacle Type
Duplex
NEMA Enclosure Rating
Not Rated
Item
Plugs and Receptacles

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type Screw-On Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
