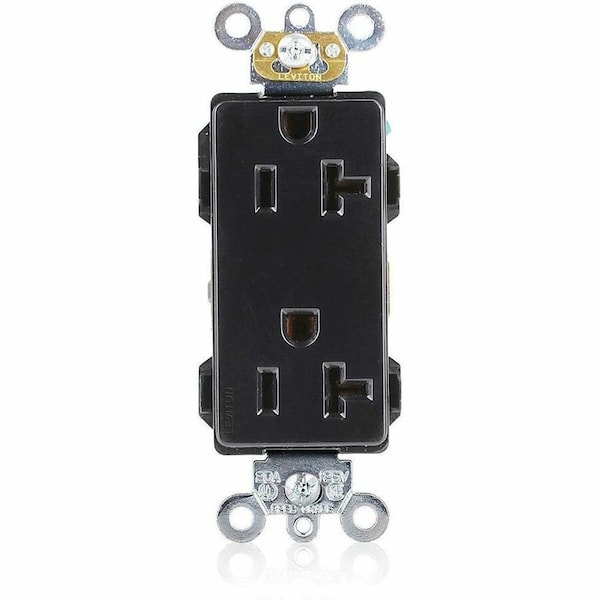

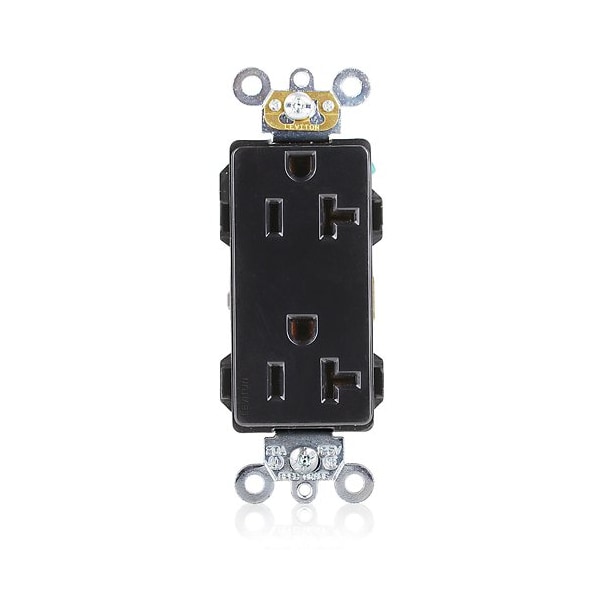

PlugsandReceptacles, 20A, 125VAC, Blk, Nylon

  • Mfr # 16362-E

  • Zoro # G722586674

product price:
$
9.19
/ea

Key Features

Face Plate Width
1.3 in
Polarized
Yes
Connection Orientation
Straight
Number of Poles
2
NEMA Receptacle Configuration
5-20R
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16362-E
Zoro #
G722586674
UPC #
78477946640
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.2 in
Maximum Wire Size
10 AWG

Details

Polarized
Yes
Connection Orientation
Straight
Number of Poles
2
NEMA Receptacle Configuration
5-20R
Flange Type
Non-Flanged
Minimum Operating Temperature
-40 Degrees C
Number of Gangs
1
For Environment
Food and Beverage, Oily/Greasy
Number of Outlets
2
Contact Material
Brass
Current Rating
20 A
Voltage Rating
125V AC
IP Rating
Not Rated
Surge Protection
No
Market
Industrial
Maximum Operating Temperature
60 Degrees C
Number of Wires
3
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
Not Rated
Shrouded
No
Item
Plugs and Receptacles
Grounding
Grounded
AFCI
No
Receptacle Type
Duplex
Horsepower Rating
1 hp
Cover Type
No Cover
Wire Connection Type
Screw Terminals
Number of Wall Plates Included
0
Wiring Method
Back/Side
Mount Type
Flush
Features
Straight Blade
Phase
Single
Standards
CSA, FULS Marking, UL
Housing Material
Nylon
GFCI
No
Grade
General Use
Housing Color
Black

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
