Shop LEVITON

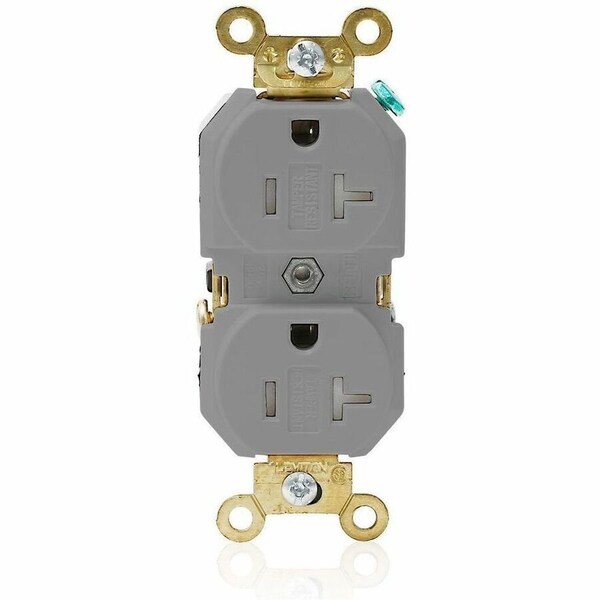

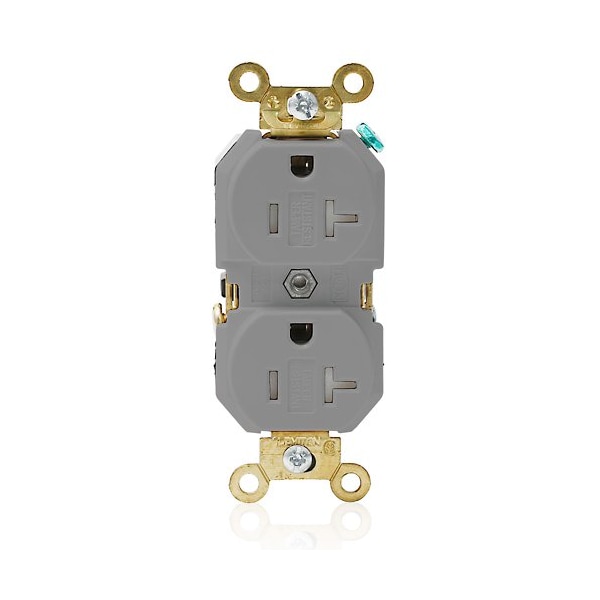

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # 5362-SGG
  • Zoro # G022587630
product price:
$
23.19
/ea

Key Features

Features
Smooth Face
Standards
CSA, FULS Marking, UL
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
Contact Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-SGG
Zoro #
G022587630
UPC #
78477868751
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.3 in

Details

Features
Smooth Face
Standards
CSA, FULS Marking, UL
Maximum Operating Temperature
75 Degrees C
Polarized
Yes
Contact Material
Brass
Housing Color
Gray
Phase
Single
Horsepower Rating
1 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
GFCI
No
Number of Wall Plates Included
0
Receptacle Type
Duplex
NEMA Enclosure Rating
Not Rated
Item
Plugs and Receptacles
NEMA Receptacle Configuration
5-20R
Resistance Properties
Tamper Resistant
Number of Wires
3
Wire Connection Type
Screw Terminals
Flange Type
Non-Flanged
AFCI
No
Shrouded
No
Connection Orientation
Straight
Market
Industrial
Voltage Rating
125V AC
Surge Protection
No
Number of Gangs
1
Number of Poles
2
IP Rating
Not Rated
For Environment
Food and Beverage, Oily/Greasy
Grade
General Use
Mount Type
Flush
Number of Outlets
2
UL 94 Flammability Rating
V-2
Wiring Method
Back/Side
Current Rating
20 A
Cover Type
No Cover
Grounding
Grounded

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
