Shop LEVITON

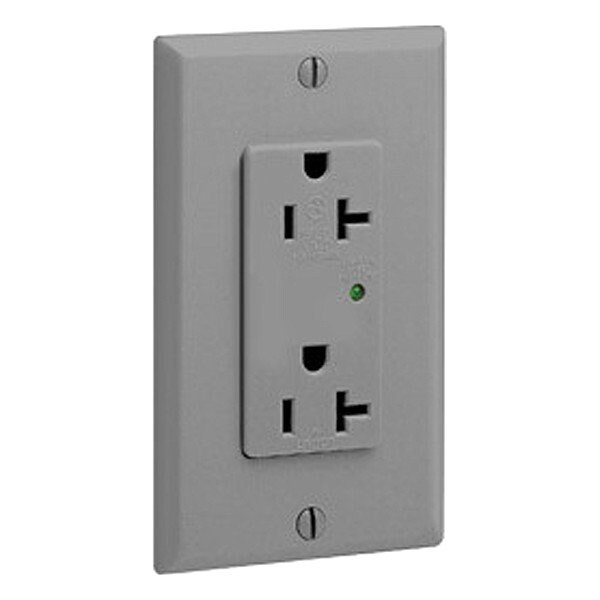

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # 5380-GY

  • Zoro # G422587865

product price:
$
54.99
/ea

Key Features

Contact Material
Brass
Number of Wires
3
Polarized
Yes
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5380-GY
Zoro #
G422587865
UPC #
78477009222
Country of Origin
Mexico
Contact Material
Brass
Number of Wires
3
Polarized
Yes
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees C
Standards
CSA, FULS Marking, UL
Number of Wall Plates Included
0
For Environment
Food and Beverage, Oily/Greasy
Number of Poles
2
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Shrouded
No
Maximum Operating Temperature
60 Degrees C
Housing Color
Gray
AFCI
No
Housing Material
Nylon
Cover Type
No Cover
Mount Type
Flush
GFCI
No
Phase
Single
IP Rating
Not Rated
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC
Market
Commercial
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Receptacle Type
Duplex
Wiring Method
Back/Side
Flange Type
Non-Flanged
Number of Gangs
1
Features
Indicator Light
Item
Plugs and Receptacles
NEMA Receptacle Configuration
5-20R
Grade
General Use
Current Rating
20 A
Grounding
Grounded
Maximum Surge Current
27 kA
Surge Protection
Yes

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
