Shop LEVITON

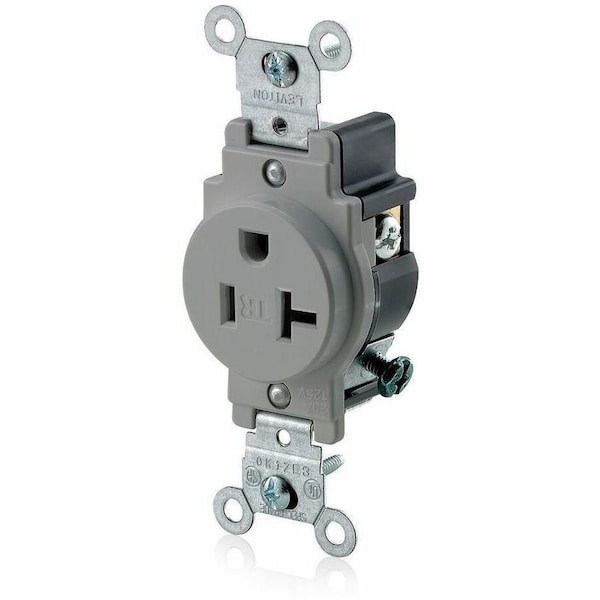

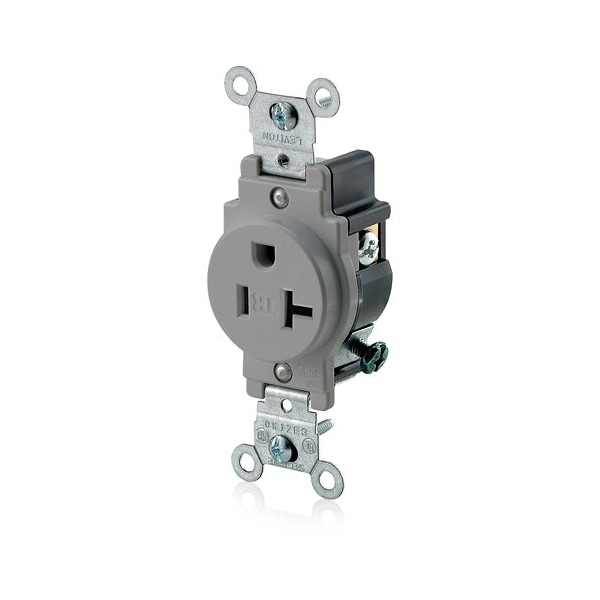

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # T5020-GY

  • Zoro # G022586688

product price:
$
9.19
/ea

Key Features

Mount Type
Flush
Connection Orientation
Straight
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T5020-GY
Zoro #
G022586688
UPC #
78477760949
Country of Origin
Mexico
Mount Type
Flush
Connection Orientation
Straight
Number of Gangs
1
Minimum Operating Temperature
-40 Degrees C
AFCI
No
NEMA Enclosure Rating
Not Rated
Grounding
Grounded
Housing Color
Gray
Market
Commercial
Number of Wall Plates Included
0
Contact Material
Brass
For Environment
Food and Beverage, Oily/Greasy
Number of Poles
2
GFCI
No
Features
Smooth Face
Flange Type
Non-Flanged
Wiring Method
Back/Side
Item
Plugs and Receptacles
Maximum Operating Temperature
60 Degrees C
Horsepower Rating
1 hp
Voltage Rating
125V AC
Phase
Single
Surge Protection
No
Number of Wires
3
Current Rating
20 A
Grade
General Use
Housing Material
Nylon
Standards
CSA, FULS Marking, UL
Polarized
Yes
Number of Outlets
1
Wire Connection Type
Screw Terminals
Shrouded
No
Receptacle Type
Single
IP Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Cover Type
No Cover
Resistance Properties
Tamper Resistant

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
