Shop LEVITON

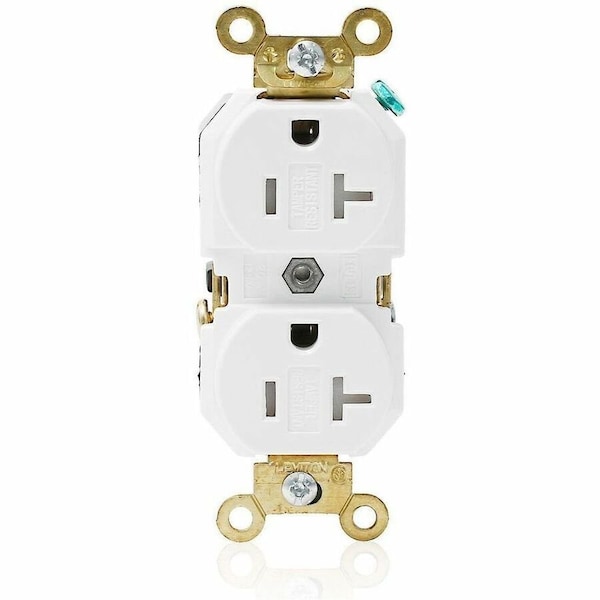

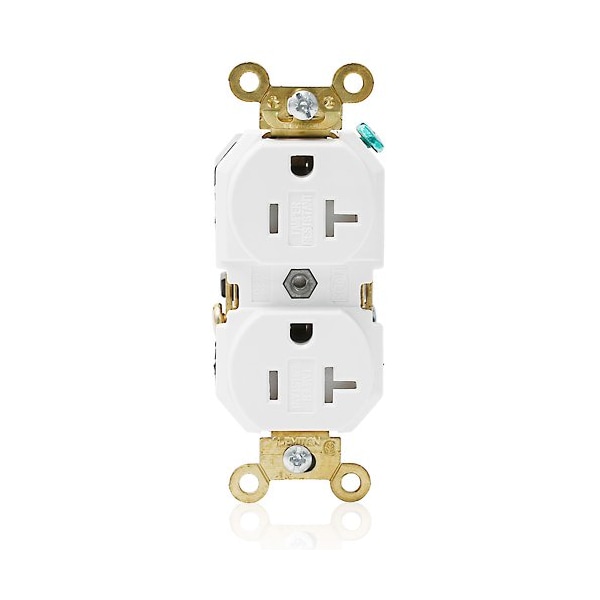

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # 5362-SGW

  • Zoro # G422586530

product price:
$
23.19
/ea

Key Features

Standards
CSA, FULS Marking, UL
Number of Wall Plates Included
0
Housing Material
Nylon
Surge Protection
No
NEMA Enclosure Rating
Not Rated
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-SGW
Zoro #
G422586530
UPC #
78477868720
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.3 in
Maximum Wire Size
10 AWG

Details

Standards
CSA, FULS Marking, UL
Number of Wall Plates Included
0
Housing Material
Nylon
Surge Protection
No
NEMA Enclosure Rating
Not Rated
Number of Poles
2
Horsepower Rating
1 hp
Housing Color
White
UL 94 Flammability Rating
V-2
Contact Material
Brass
Number of Outlets
2
Resistance Properties
Tamper Resistant
Voltage Rating
125V AC
Market
Industrial
Grounding
Grounded
Mount Type
Flush
Wiring Method
Back/Side
Flange Type
Non-Flanged
For Environment
Food and Beverage, Oily/Greasy
Grade
General Use
Current Rating
20 A
Phase
Single
Connection Orientation
Straight
GFCI
No
Receptacle Type
Duplex
Cover Type
No Cover
Minimum Operating Temperature
-40 Degrees C
Number of Gangs
1
IP Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Maximum Operating Temperature
75 Degrees C
Number of Wires
3
Item
Plugs and Receptacles
Polarized
Yes
Shrouded
No
Wire Connection Type
Screw Terminals
AFCI
No
Features
Smooth Face

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
