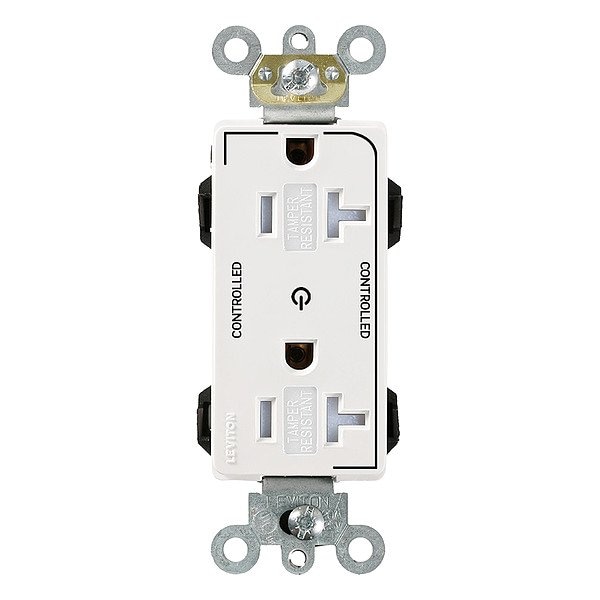

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # MT163-2W

  • Zoro # G422587094

product price:
$
22.89
/ea

Key Features

Grade
General Use
Voltage Rating
125V AC
Connection Orientation
Straight
Contact Material
Brass
Housing Material
Nylon
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
MT163-2W
Zoro #
G422587094
UPC #
78477892206
Country of Origin
Mexico
Grade
General Use
Voltage Rating
125V AC
Connection Orientation
Straight
Contact Material
Brass
Housing Material
Nylon
For Environment
Food and Beverage, Oily/Greasy
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1 hp
Wire Connection Type
Snap-In Module
Surge Protection
No
Shrouded
No
AFCI
No
Grounding
Grounded
Number of Outlets
2
Wiring Method
Back
NEMA Receptacle Configuration
5-20R
Housing Color
White
Resistance Properties
Tamper Resistant
GFCI
No
Mount Type
Flush
Standards
CSA, FULS Marking, UL
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Phase
Single
Number of Gangs
1
Maximum Operating Temperature
60 Degrees C
UL 94 Flammability Rating
V-2
Number of Poles
2
Market
Industrial
Flange Type
Non-Flanged
IP Rating
Not Rated
Features
Smooth Face, Two Outlets Marked "Controlled"
Receptacle Type
Duplex
Item
Plugs and Receptacles
Number of Wires
3
Number of Wall Plates Included
0
Current Rating
20 A

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
