Shop LEVITON

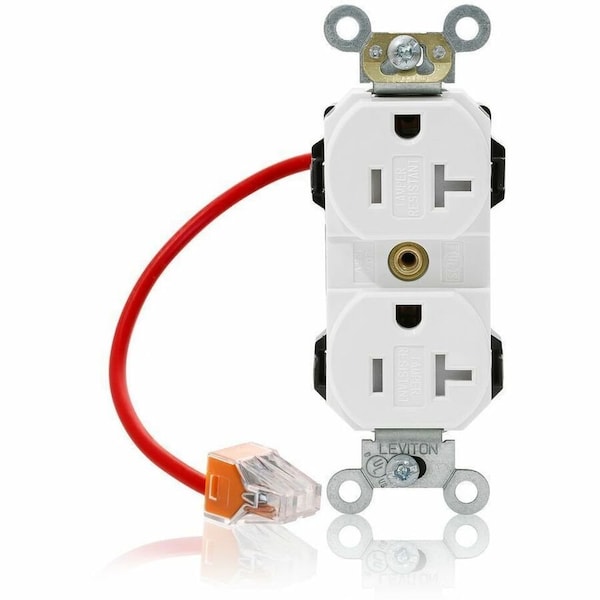

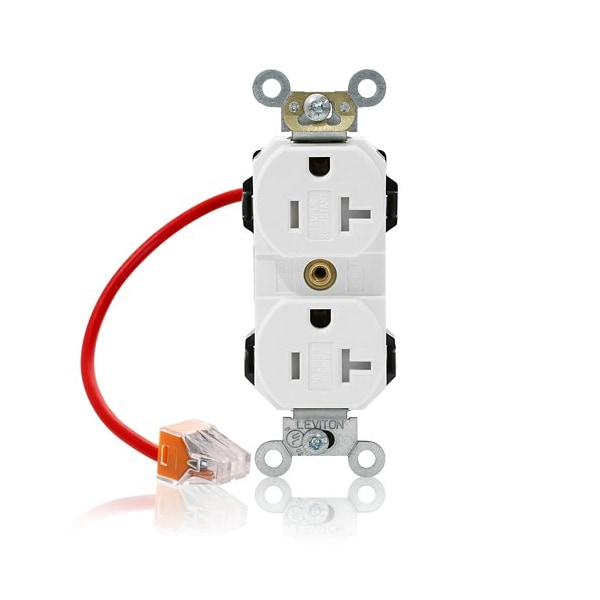

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # MT563-SCW

  • Zoro # G222587928

product price:
$
21.69
/ea

Key Features

Shrouded
No
NEMA Receptacle Configuration
5-20R
Phase
Single
UL 94 Flammability Rating
V-2
Features
Smooth Face
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MT563-SCW
Zoro #
G222587928
UPC #
78477741146
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Shrouded
No
NEMA Receptacle Configuration
5-20R
Phase
Single
UL 94 Flammability Rating
V-2
Features
Smooth Face
Current Rating
20 A
NEMA Enclosure Rating
Not Rated
Grade
General Use
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
Number of Wall Plates Included
0
Wiring Method
Back
Market
Industrial
Receptacle Type
Duplex
Grounding
Grounded
Number of Wires
3
Maximum Operating Temperature
60 Degrees C
Standards
CSA, FULS Marking, UL
For Environment
Food and Beverage, Oily/Greasy
GFCI
No
Number of Poles
2
IP Rating
Not Rated
Wire Connection Type
Snap-In Module
Flange Type
Non-Flanged
Surge Protection
No
Polarized
Yes
Cover Type
No Cover
AFCI
No
Housing Color
White
Mount Type
Flush
Number of Gangs
1
Number of Outlets
2
Voltage Rating
125V AC
Item
Plugs and Receptacles
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Contact Material
Brass
Connection Orientation
Straight

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
