Shop LEVITON

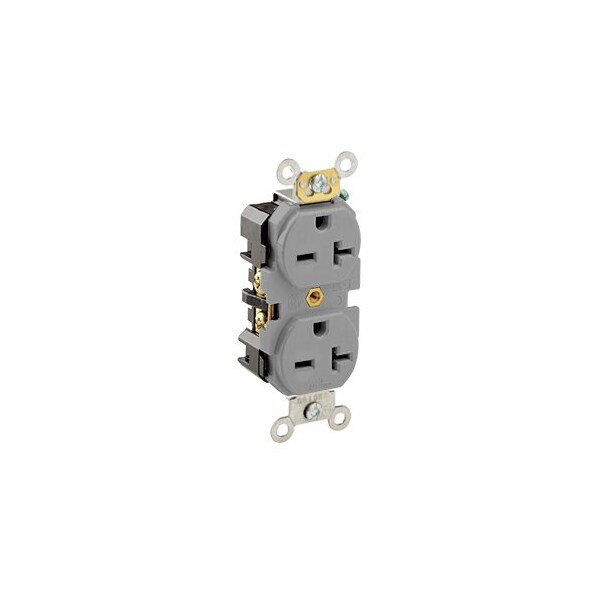

PlugsandReceptacles, 20A, 250VAC, Gry, Nylon

  • Mfr # 5462-GY

  • Zoro # G622587863

product price:
$
17.49
/ea

Key Features

Housing Material
Nylon
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Number of Wires
3
Number of Poles
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5462-GY
Zoro #
G622587863
UPC #
78477026519
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG

Details

Housing Material
Nylon
Item
Plugs and Receptacles
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
Number of Wires
3
Number of Poles
2
Voltage Rating
250V AC
Number of Outlets
2
IP Rating
Not Rated
AFCI
No
Flange Type
Non-Flanged
Wire Connection Type
Screw Terminals
Standards
CSA, FULS Marking, UL
GFCI
No
Number of Gangs
1
NEMA Enclosure Rating
Not Rated
Resistance Properties
Tamper Resistant
NEMA Receptacle Configuration
6-20R
Grade
Federal Specification
Phase
Single
Number of Wall Plates Included
0
Current Rating
20 A
For Environment
Food and Beverage, Oily/Greasy
Grounding
Grounded
Horsepower Rating
2 hp
Market
Industrial
Housing Color
Gray
Receptacle Type
Duplex
Contact Material
Brass
Features
Smooth Face
Cover Type
No Cover
Polarized
Yes
Surge Protection
No
Shrouded
No
Wiring Method
Back/Side
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Mount Type
Flush

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
