Shop LEVITON

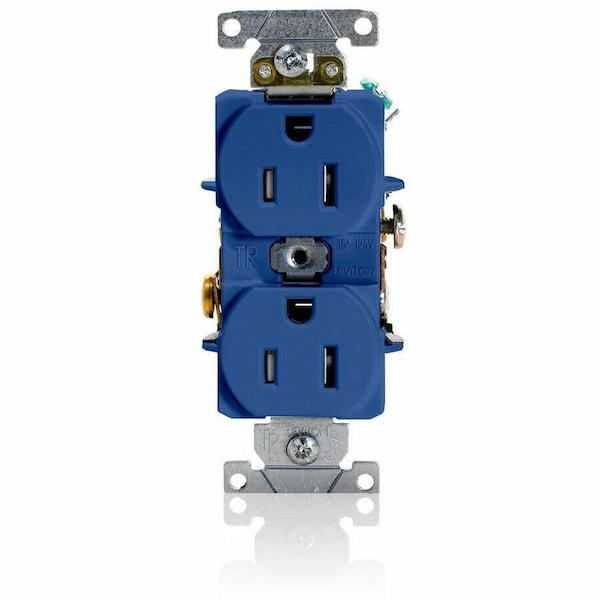

Plugs&Rcptcls, 15A, 125VAC, Bl, PBT, PK1

  • Mfr # T5262-BU

  • Zoro # G422586950

product price:
$
265.99
/pk of 10, $26.60/ea
Free Shipping & Returns

Key Features

Minimum Wire Size
14 AWG
Voltage Rating
125V AC
Receptacle Type
Duplex
Surge Protection
No
Overall Depth
1.1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5262-BU
Zoro #
G422586950
UPC #
78477895351
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Height
2.8 in
Face Plate Width
1.4 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Voltage Rating
125V AC
Receptacle Type
Duplex
Surge Protection
No
Flange Type
Non-Flanged
Grounding
Grounded
Number of Wall Plates Included
0
NEMA Receptacle Configuration
5-15R
Maximum Operating Temperature
75 Degrees C
AFCI
No
Mount Type
Flush
Resistance Properties
Tamper Resistant
Contact Material
Phosphor Bronze
UL 94 Flammability Rating
V-0
Number of Wires
3
Phase
Single
Features
Smooth Face
Number of Outlets
2
Wiring Method
Back/Side
Standards
CSA, FULS Marking, UL
For Environment
Food and Beverage, Oily/Greasy
Item
Plugs and Receptacles
Cover Type
No Cover
IP Rating
Not Rated
Grade
General Use
Housing Color
Blue
NEMA Enclosure Rating
Not Rated
GFCI
No
Shrouded
No
Polarized
Yes
Horsepower Rating
1/2 hp
Number of Gangs
1
Connection Orientation
Straight
Housing Material
PBT Polyester
Current Rating
15 A
Wire Connection Type
Screw Terminals
Market
Industrial
Minimum Operating Temperature
-40 Degrees C
Number of Poles
2

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
