Shop LEVITON

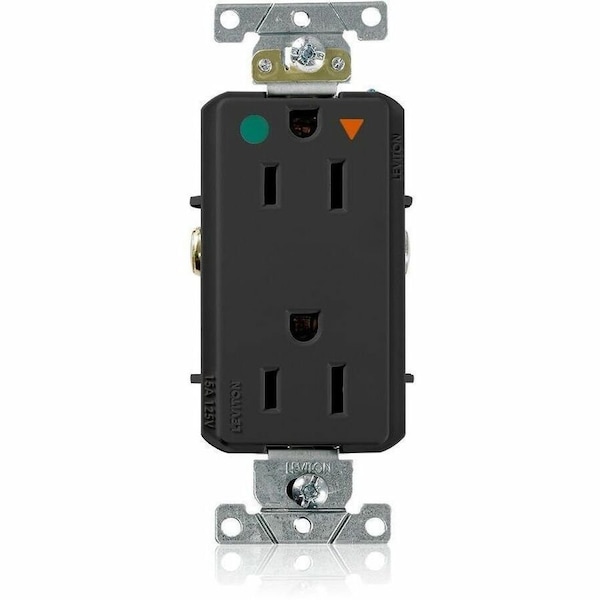

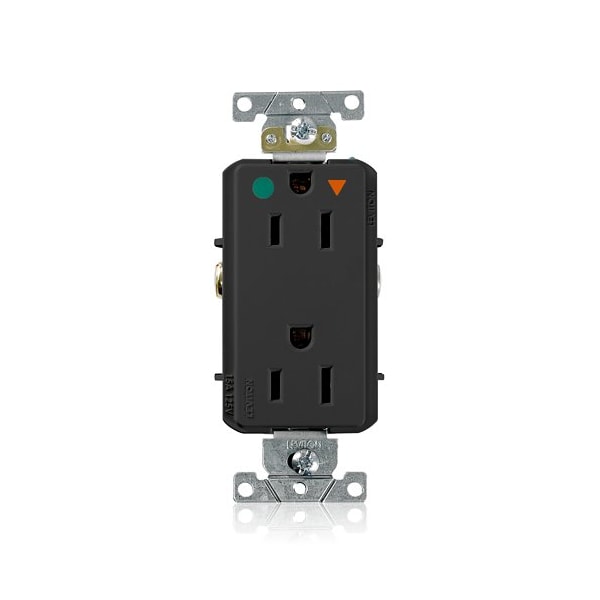

Plugs&Rcptcls, 15A, 125VAC, Blk, PBT, PK1

  • Mfr # D8200-IGE

  • Zoro # G222587461

product price:
$
337.99
/pk of 10, $33.80/ea
Free Shipping & Returns

Key Features

Features
Smooth Face
Standards
CSA, FULS Marking, UL
NEMA Enclosure Rating
Not Rated
Phase
Single
GFCI
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D8200-IGE
Zoro #
G222587461
UPC #
78477900185
Country of Origin
Mexico

Dimensions

Face Plate Width
1.6 in
Overall Depth
1.1 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG

Details

Features
Smooth Face
Standards
CSA, FULS Marking, UL
NEMA Enclosure Rating
Not Rated
Phase
Single
GFCI
No
Connection Orientation
Straight
Market
Commercial
Grounding
Isolated Ground
Surge Protection
No
Grade
Hospital Grade
Current Rating
15 A
Polarized
Yes
Number of Gangs
1
Mount Type
Flush
Housing Color
Black
Minimum Operating Temperature
-40 Degrees C
Number of Wall Plates Included
0
Number of Poles
2
Wire Connection Type
Screw Terminals
NEMA Receptacle Configuration
5-15R
Number of Outlets
2
Cover Type
No Cover
Maximum Operating Temperature
75 Degrees C
Housing Material
PBT Polyester
UL 94 Flammability Rating
V-0
Contact Material
Phosphor Bronze
Wiring Method
Back/Side
Flange Type
Non-Flanged
IP Rating
Not Rated
AFCI
No
Receptacle Type
Duplex
Horsepower Rating
1/2 hp
Voltage Rating
125V AC
For Environment
Food and Beverage, Oily/Greasy
Number of Wires
3
Shrouded
No
Item
Plugs and Receptacles

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
