Shop LEVITON

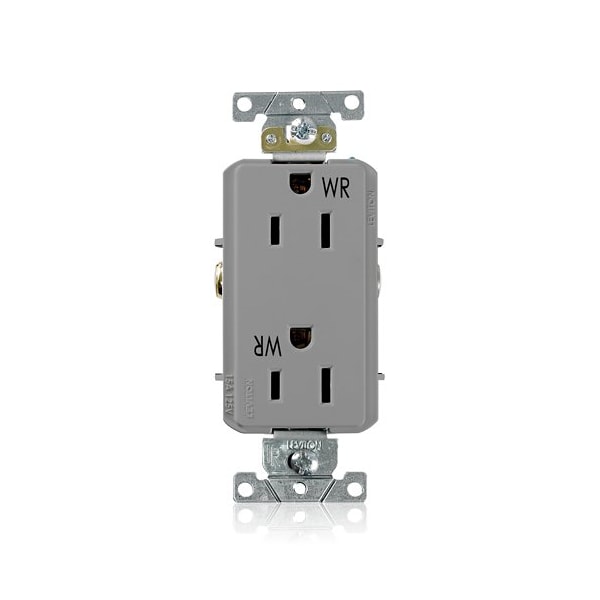

Plugs&Rcptcls, 15A, 125VAC, Gry, PBT, PK1

  • Mfr # WTD15-GY

  • Zoro # G622587993

product price:
$
226.99
/pk 10, $22.70/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Minimum Wire Size
14 AWG
UL 94 Flammability Rating
V-0
Surge Protection
No
Overall Depth
1.1 in
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WTD15-GY
Zoro #
G622587993
UPC #
78477722978
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Width
1.6 in
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

UL 94 Flammability Rating
V-0
Surge Protection
No
Phase
Single
Polarized
Yes
Resistance Properties
Tamper Resistant, Weather Resistant
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
1/2 hp
Receptacle Type
Duplex
Wiring Method
Back/Side
Voltage Rating
125V AC
Mount Type
Flush
Standards
CSA, FULS Marking, UL
Connection Orientation
Straight
Current Rating
15 A
Maximum Operating Temperature
75 Degrees C
Flange Type
Non-Flanged
GFCI
No
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
For Environment
Food and Beverage, Oily/Greasy
Grade
General Use
Item
Plugs and Receptacles
Number of Poles
2
Cover Type
No Cover
Grounding
Grounded
Housing Material
PBT Polyester
Shrouded
No
Number of Outlets
2
Contact Material
Phosphor Bronze
Number of Wall Plates Included
0
Number of Gangs
1
IP Rating
Not Rated
Features
Smooth Face
Housing Color
Gray
AFCI
No
Number of Wires
3
Market
Industrial

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
