Shop LEVITON

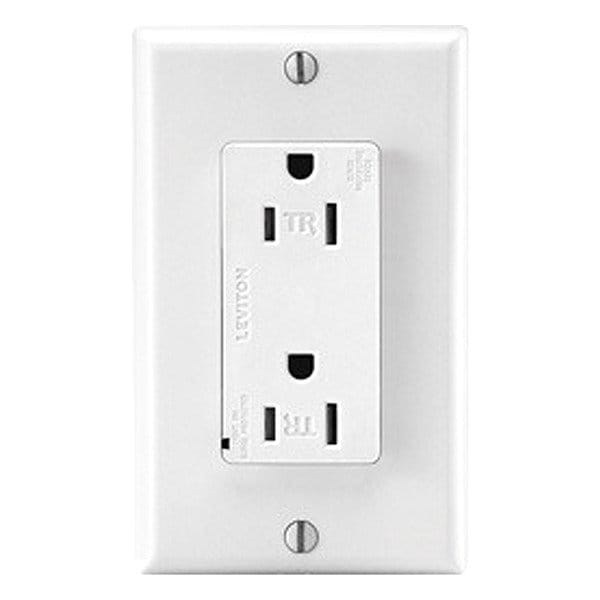

Plugs&Rcptcls, 15A, 125VAC, Wht, Polycarb

  • Mfr # T5280-W

  • Zoro # G522587277

product price:
$
71.49
/ea

Key Features

Resistance Properties
Tamper Resistant
Market
Commercial
Polarized
Yes
Minimum Wire Size
14 AWG
For Environment
Food and Beverage, Oily/Greasy
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T5280-W
Zoro #
G522587277
UPC #
78477434314
Country of Origin
Mexico
Resistance Properties
Tamper Resistant
Market
Commercial
Polarized
Yes
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
GFCI
No
NEMA Enclosure Rating
Not Rated
Housing Material
Polycarbonate
Number of Wall Plates Included
0
Mount Type
Flush
Horsepower Rating
1 hp
Maximum Surge Current
27 kA
Features
Indicator Light
Wire Connection Type
Screw Terminals
Includes
Wallplate
Number of Poles
2
NEMA Receptacle Configuration
5-15R
Housing Color
White
Flange Type
Non-Flanged
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees C
Wiring Method
Back/Side
Standards
CSA, FULS Marking, UL
Current Rating
15 A
Contact Material
Brass
IP Rating
Not Rated
Number of Wires
3
Surge Protection
Yes
Receptacle Type
Duplex
Shrouded
No
Voltage Rating
125V AC
Phase
Single
Number of Gangs
1
Grounding
Grounded
Maximum Operating Temperature
60 Degrees C
Item
Plugs and Receptacles
AFCI
No
Grade
General Use
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
