Shop LEVITON

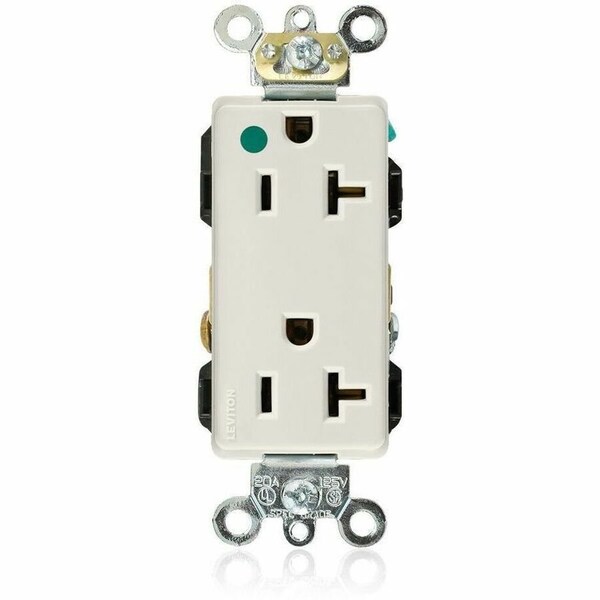

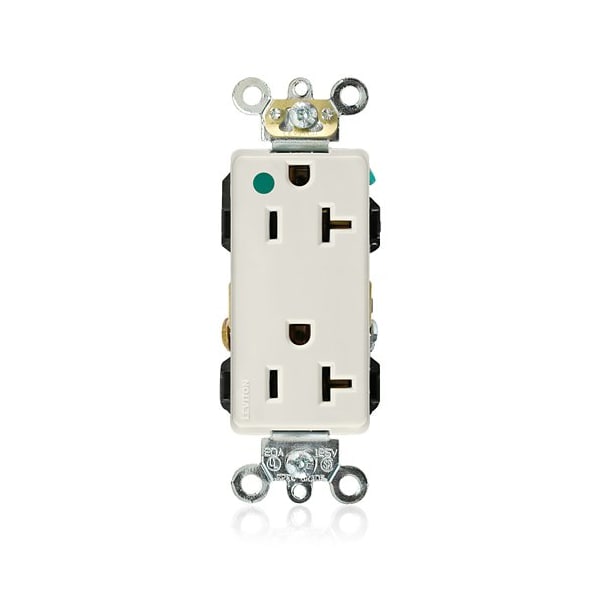

Plugs&Rcptcls, 20A, 125VAC, Almnd, Nylon

  • Mfr # 16362-HGT

  • Zoro # G022586398

product price:
$
17.89
/ea

Key Features

Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
Number of Wires
3
Housing Material
Nylon
Receptacle Type
Duplex
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16362-HGT
Zoro #
G022586398
UPC #
78477425114
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Overall Depth
1.1 in
Face Plate Width
1.3 in

Details

Minimum Operating Temperature
-40 Degrees C
Number of Outlets
2
Number of Wires
3
Housing Material
Nylon
Receptacle Type
Duplex
Grade
Hospital Grade
Cover Type
No Cover
Wire Connection Type
Screw Terminals
GFCI
No
Number of Gangs
1
Flange Type
Non-Flanged
Market
Commercial
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
60 Degrees C
Item
Plugs and Receptacles
Grounding
Grounded
Surge Protection
No
Number of Poles
2
Housing Color
Light Almond
Horsepower Rating
1 hp
IP Rating
Not Rated
For Environment
Food and Beverage, Oily/Greasy
Number of Wall Plates Included
0
AFCI
No
Phase
Single
Connection Orientation
Straight
Standards
CSA, FULS Marking, UL
UL 94 Flammability Rating
V-2
Current Rating
20 A
Wiring Method
Back/Side
Shrouded
No
Voltage Rating
125V AC
Features
Smooth Face
NEMA Receptacle Configuration
5-20R
Contact Material
Brass
Mount Type
Flush
Polarized
Yes

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
