Shop LEVITON

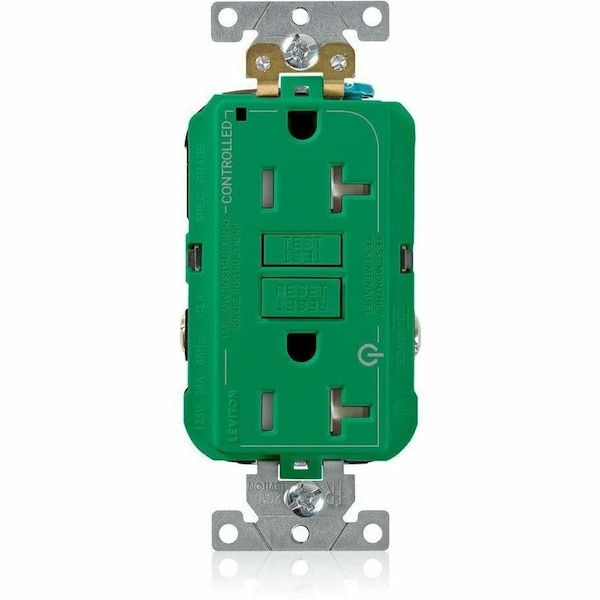

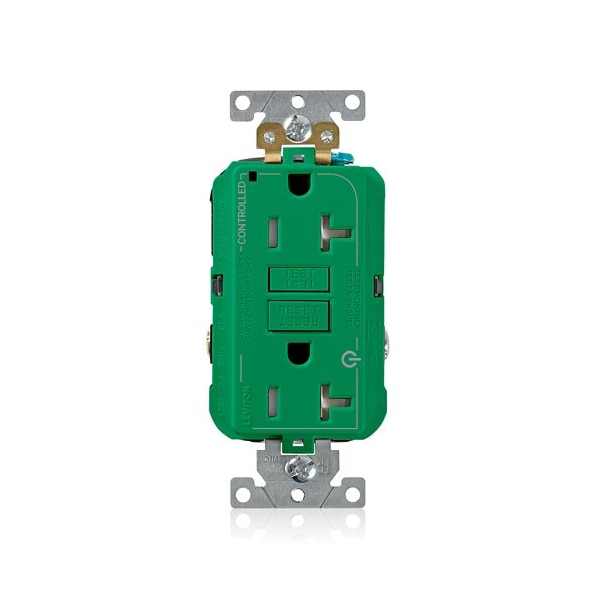

Plugs&Rcptcls, 20A, 125VAC, Grn, Polycarb

  • Mfr # G5362-2TN

  • Zoro # G522588137

product price:
$
55.15
/ea

Key Features

Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
Standards
CSA, FULS Marking, UL
GFCI
Yes
Housing Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G5362-2TN
Zoro #
G522588137
UPC #
78477404294
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.8 in
Face Plate Height
2.8 in
Face Plate Width
1.7 in

Details

Wire Connection Type
Screw Terminals
For Environment
Food and Beverage, Oily/Greasy
Standards
CSA, FULS Marking, UL
GFCI
Yes
Housing Color
Green
Minimum Operating Temperature
-35 Degrees C
Number of Gangs
1
Voltage Rating
125V AC
Flange Type
Non-Flanged
Wiring Method
Back/Side
NEMA Enclosure Rating
Not Rated
Phase
Single
Polarized
Yes
Item
Plugs and Receptacles
Cover Type
No Cover
Shrouded
No
Surge Protection
No
NEMA Receptacle Configuration
5-20R
Number of Wall Plates Included
0
Current Rating
20 A
Number of Outlets
2
Contact Material
Brass
Receptacle Type
Duplex
Maximum Operating Temperature
66 Degrees C
Horsepower Rating
1 hp
Mount Type
Flush
Self Testing
Yes
IP Rating
Not Rated
Number of Wires
3
Grade
General Use
Housing Material
Polycarbonate
AFCI
No
Maximum Surge Current
10 kA
Grounding
Grounded
Connection Orientation
Straight
Features
Power Indication
Number of Poles
2
Resistance Properties
Tamper Resistant
Market
Industrial

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Green, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
