Shop LEVITON

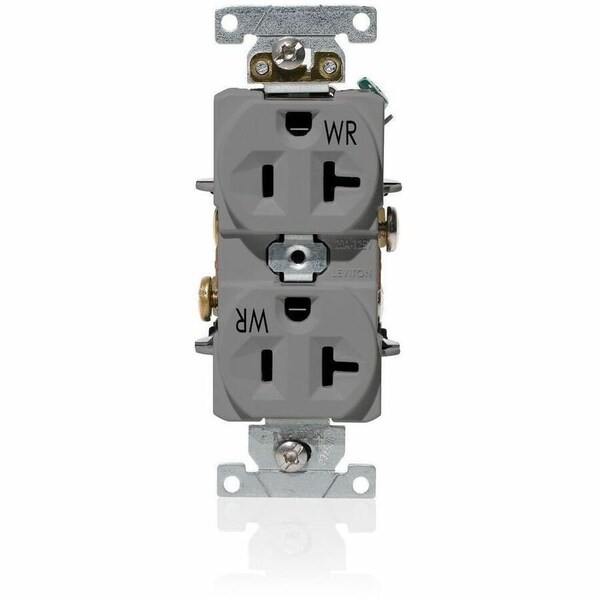

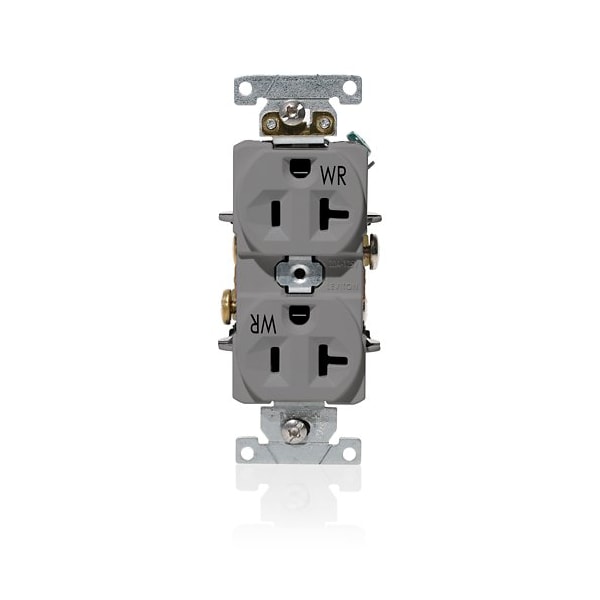

Plugs&Rcptcls, 20A, 125VAC, Gry, PBT, PK1

  • Mfr # WBR20-GY

  • Zoro # G822587861

product price:
$
123.99
/pk 10, $12.40/ea
Free Shipping & Returns

Key Features

Voltage Rating
125V AC
Features
Indented Face
Number of Outlets
2
Standards
CSA, FULS Marking, UL
Housing Material
PBT Polyester
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WBR20-GY
Zoro #
G822587861
UPC #
78477907801
Country of Origin
Mexico

Dimensions

Face Plate Width
1.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Face Plate Height
2.8 in

Details

Voltage Rating
125V AC
Features
Indented Face
Number of Outlets
2
Standards
CSA, FULS Marking, UL
Housing Material
PBT Polyester
Number of Poles
2
Shrouded
No
NEMA Receptacle Configuration
5-20R
Mount Type
Flush
AFCI
No
GFCI
No
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees C
Current Rating
20 A
Flange Type
Non-Flanged
Receptacle Type
Duplex
IP Rating
Not Rated
UL 94 Flammability Rating
V-0
For Environment
Food and Beverage, Oily/Greasy
NEMA Enclosure Rating
Not Rated
Phase
Single
Market
Industrial
Number of Wall Plates Included
0
Connection Orientation
Straight
Horsepower Rating
1 hp
Item
Plugs and Receptacles
Number of Gangs
1
Housing Color
Gray
Wire Connection Type
Screw Terminals
Wiring Method
Back/Side
Cover Type
No Cover
Surge Protection
No
Grade
General Use
Number of Wires
3
Grounding
Grounded
Resistance Properties
Weather Resistant
Maximum Operating Temperature
75 Degrees C
Polarized
Yes

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA, FULS Marking, UL
