Shop LEVITON

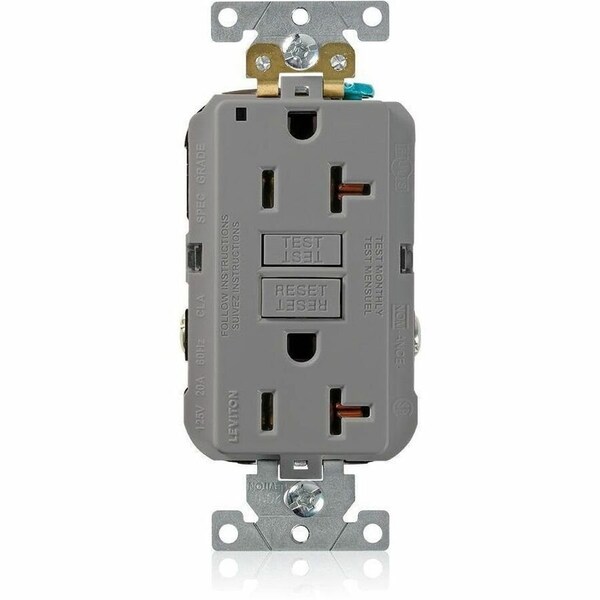

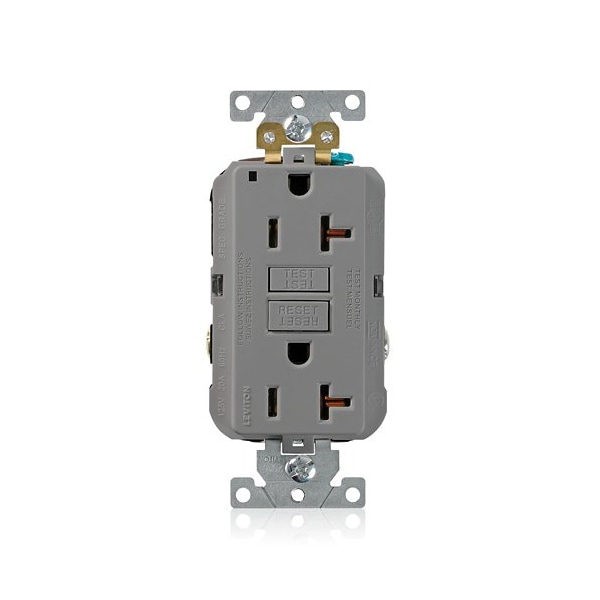

Plugs&Rcptcls, 20A, 125VAC, Gry, Polycarb

  • Mfr # G5362-GY

  • Zoro # G422586943

product price:
$
43.59
/ea

Key Features

Receptacle Type
Duplex
Grade
General Use
Housing Material
Polycarbonate
Number of Poles
2
Face Plate Width
1.7 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G5362-GY
Zoro #
G422586943
UPC #
78477906132
Country of Origin
China

Dimensions

Face Plate Width
1.7 in
Overall Depth
1.4 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Receptacle Type
Duplex
Grade
General Use
Housing Material
Polycarbonate
Number of Poles
2
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-35 Degrees C
Self Testing
Yes
Number of Wall Plates Included
0
Number of Gangs
1
Maximum Operating Temperature
66 Degrees C
Number of Outlets
2
Number of Wires
3
Horsepower Rating
1 hp
Connection Orientation
Straight
Item
Plugs and Receptacles
Housing Color
Gray
Wiring Method
Back/Side
Standards
CSA, FULS Marking, UL
Grounding
Grounded
IP Rating
Not Rated
Voltage Rating
125V AC
NEMA Receptacle Configuration
5-20R
Flange Type
Non-Flanged
NEMA Enclosure Rating
Not Rated
Market
Industrial
Polarized
Yes
Current Rating
20 A
For Environment
Food and Beverage, Oily/Greasy
GFCI
Yes
Features
20 a Feed-Through Terminals, Power Indication LED
AFCI
No
Mount Type
Flush
Maximum Surge Current
10 kA
Contact Material
Brass
Shrouded
No
Surge Protection
No
Phase
Single
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
