Shop LEVITON

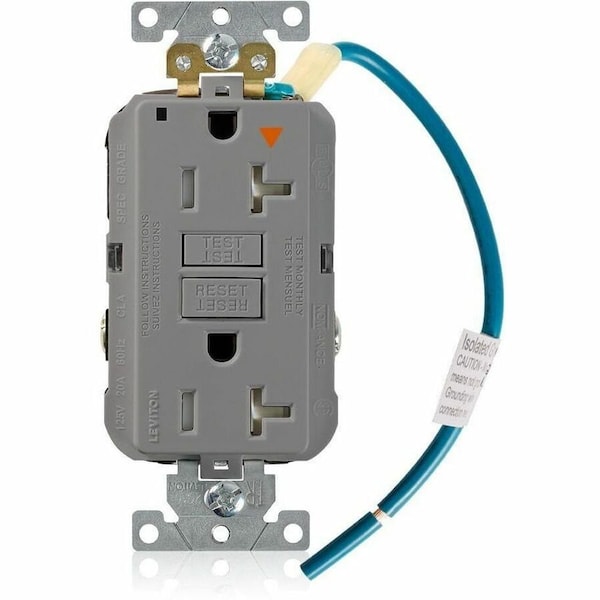

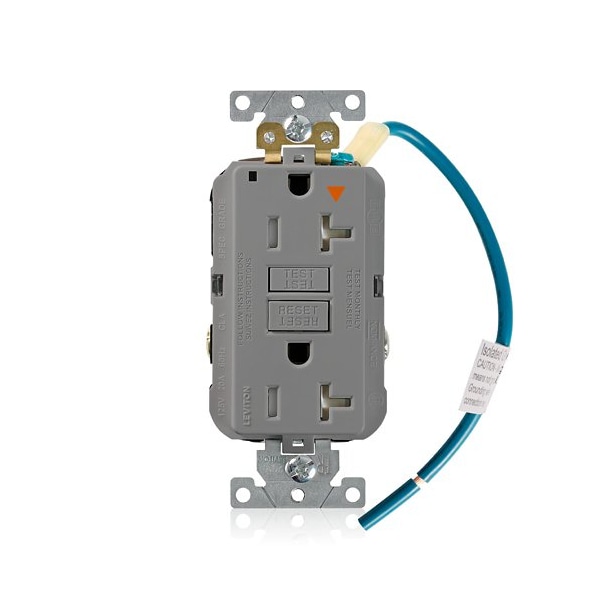

Plugs&Rcptcls, 20A, 125VAC, Gry, Polycarb

  • Mfr # GFTR2-IGG

  • Zoro # G322587026

product price:
$
48.59
/ea

Key Features

Face Plate Height
2.8 in
Standards
CSA, FULS Marking, UL
IP Rating
Not Rated
Minimum Operating Temperature
-35 Degrees C
Shrouded
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GFTR2-IGG
Zoro #
G322587026
UPC #
78477724057
Country of Origin
China
Standards
CSA, FULS Marking, UL
IP Rating
Not Rated
Minimum Operating Temperature
-35 Degrees C
Shrouded
No
Housing Color
Gray
Resistance Properties
Tamper Resistant
Wiring Method
Back/Side
Cover Type
No Cover
For Environment
Food and Beverage, Oily/Greasy
GFCI
Yes
Current Rating
20 A
Flange Type
Non-Flanged
Features
Power Indication
Grade
General Use
Item
Plugs and Receptacles
Polarized
Yes
Self Testing
Yes
Receptacle Type
Duplex
Surge Protection
No
Horsepower Rating
1 hp
Number of Gangs
1
Mount Type
Flush
Market
Industrial
Number of Poles
2
NEMA Enclosure Rating
Not Rated
Phase
Single
NEMA Receptacle Configuration
5-20R
Number of Wall Plates Included
0
Voltage Rating
125V AC
Grounding
Isolated Ground
Maximum Operating Temperature
66 Degrees C
Maximum Surge Current
10 kA
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Housing Material
Polycarbonate
Contact Material
Brass
Number of Outlets
2
Number of Wires
3
AFCI
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
