Shop LEVITON

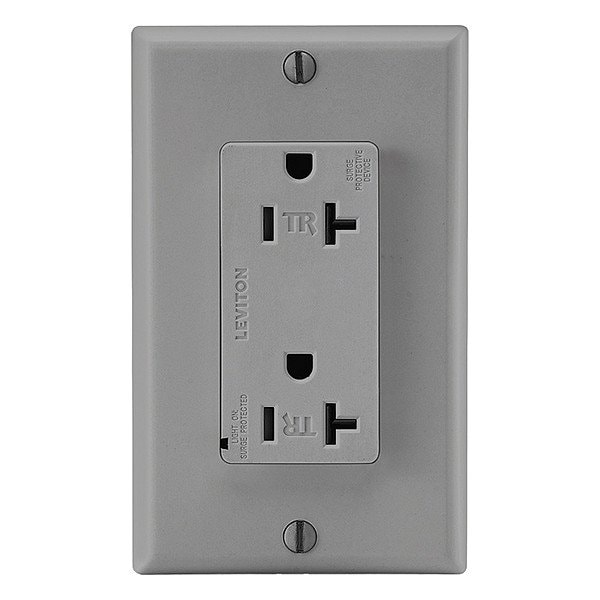

Plugs&Rcptcls, 20A, 125VAC, Gry, Polycarb

  • Mfr # T5380-GY

  • Zoro # G122587073

product price:
$
80.99
/ea

Key Features

Features
Indicator Light
Number of Poles
2
NEMA Receptacle Configuration
5-20R
Minimum Wire Size
14 AWG
Minimum Operating Temperature
-40 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T5380-GY
Zoro #
G122587073
UPC #
78477434383
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Features
Indicator Light
Number of Poles
2
NEMA Receptacle Configuration
5-20R
Minimum Operating Temperature
-40 Degrees C
Surge Protection
No
Horsepower Rating
1 hp
Maximum Operating Temperature
60 Degrees C
AFCI
No
Receptacle Type
Duplex
Contact Material
Brass
Standards
CSA, FULS Marking, UL
Housing Material
Polycarbonate
For Environment
Food and Beverage, Oily/Greasy
Number of Wall Plates Included
0
Polarized
Yes
Market
Commercial
Maximum Surge Current
27 kA
GFCI
No
Current Rating
20 A
Cover Type
No Cover
Wire Connection Type
Screw Terminals
Item
Plugs and Receptacles
IP Rating
Not Rated
Number of Outlets
2
Number of Gangs
1
Voltage Rating
125V AC
Resistance Properties
Tamper Resistant
Mount Type
Flush
Phase
Single
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Housing Color
Gray
Grade
General Use
Grounding
Grounded
Wiring Method
Back/Side
Includes
Wallplate
Number of Wires
3
Flange Type
Non-Flanged
Shrouded
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
