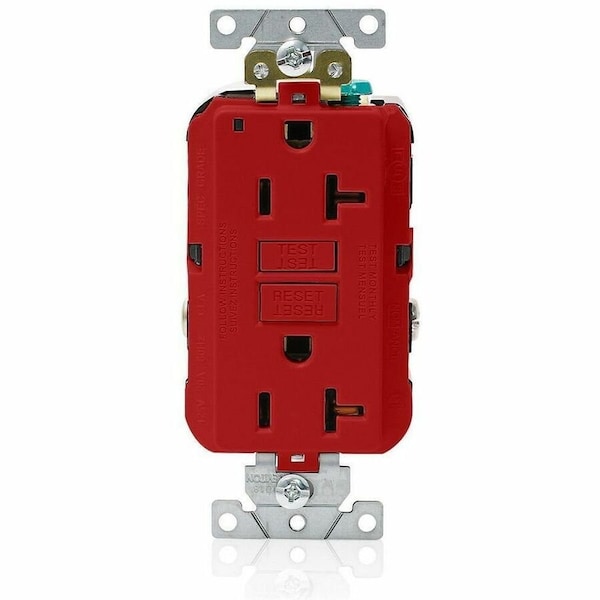

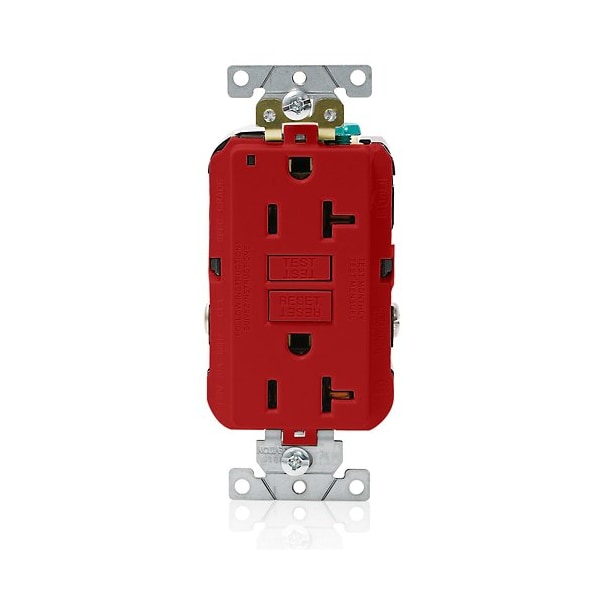

Plugs&Rcptcls, 20A, 125VAC, Rd, Polycarb

Mfr # G5362-R
Zoro # G822587601

43.59

Key Features

Grounding

Grounded

Face Plate Height

2.8 in

Polarized

Yes

Standards

CSA, FULS Marking, UL

Receptacle Type

Duplex

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: G5362-R
Zoro #: G822587601
UPC #: 78477906149
Country of Origin: China

Dimensions

Face Plate Height: 2.8 in
Face Plate Width: 1.7 in
Mount Hole Center-to-Center Height: 3.3 in
Overall Depth: 1.4 in

Details

Grounding: Grounded
Polarized: Yes
Standards: CSA, FULS Marking, UL
Receptacle Type: Duplex
AFCI: No
For Environment: Food and Beverage, Oily/Greasy
Grade: General Use
Wire Connection Type: Screw Terminals
Features: 20 a Feed-Through Terminals, Power Indication LED
Voltage Rating: 125V AC
Number of Poles: 2
Flange Type: Non-Flanged
Number of Wires: 3
Market: Industrial
NEMA Enclosure Rating: Not Rated
GFCI: Yes
Number of Gangs: 1
Shrouded: No
Number of Wall Plates Included: 0
IP Rating: Not Rated
Surge Protection: No
Number of Outlets: 2
Wiring Method: Back/Side
Current Rating: 20 A
Connection Orientation: Straight
Self Testing: Yes
Cover Type: No Cover
Contact Material: Brass
Minimum Operating Temperature: -35 Degrees C
Mount Type: Flush
Housing Material: Polycarbonate
Maximum Surge Current: 10 kA
Horsepower Rating: 1 hp
NEMA Receptacle Configuration: 5-20R
Maximum Operating Temperature: 66 Degrees C
Phase: Single
Item: Plugs and Receptacles
Housing Color: Red

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
