  11. Recept, Blk, 20 A, GFCI, 2P3W, Back; Side, 1PK

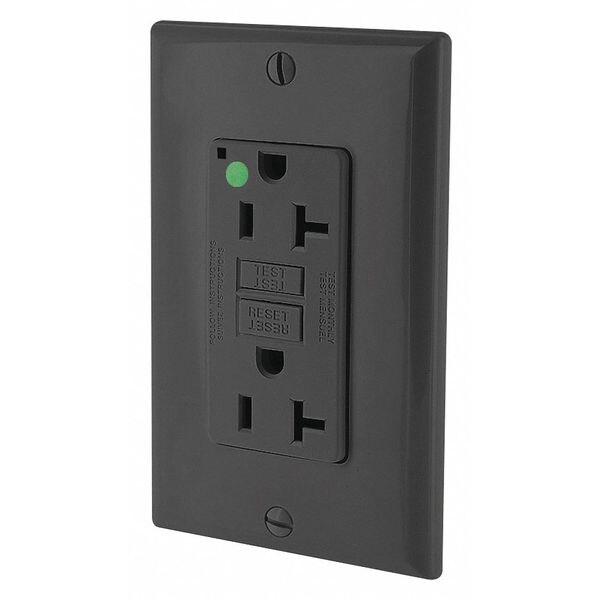

Leviton Recept, Blk, 20 A, GFCI, 2P3W, Back; Side, 1PK GFNT2-HGE - main

Recept, Blk, 20 A, GFCI, 2P3W, Back; Side, 1PK

  • Mfr # GFNT2-HGE

  • Zoro # G204392854

product price: $31.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-HGE
Zoro #
G204392854
UPC #
07847772507
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Face Plate Height
2.8 in
Face Plate Width
1.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Black
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Item - Plugs and Receptacles
GFCI Receptacle
Tamper Resistant
No
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Surge Suppression
Yes
Voltage - Plugs and Receptacles
125V
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
Yes
Outlet Type - Plugs and Receptacles
Duplex
Self-Testing
Yes
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Color - Plugs and Receptacles
Black
HP
1 hp
Color
Black
Amps - Plugs and Receptacles
20 A
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back, Side
Application Environment
Hospital Grade
Voltage
125 VAC
Wire Connection Type
Screw Terminals
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Includes
Wallplate
Receptacle Type
Decorator Duplex
Self Testing
Yes
Grade
Hospital Grade Fed. Spec.
UL 94 Flammability Rating
V-0
Horsepower Rating
1 hp
Maximum Operating Temperature
150.8 Degrees F
Surge Protection
Yes
Mount Type
Flush
Includes Mounting Hardware
Yes
Contact Material
Brass
Minimum Operating Temperature
-31 Degrees F
ANSI
C-73
Grounding Screw
Plated Steel
Face Material
PBT
Terminal Accom.
14-10 AWG solid or stranded
NEMA
WD-1 & WD-6
Amperage
20 A
Certification/Listing
UL, CSA, NOM-ANCE
Terminal Screws
Plated Steel
Strap Material
Galvanized Steel
Body Material
Polycarbonate
Function
GFCI
Device Type
Duplex Receptacle Outlet
Terminal Clamp
Brass
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Flammability
Rated V-0 per UL 94
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
At Rated Voltage
1 HP
Feature
Wallplate Included|Power Indication
Wire
3
Operating Temperature
-35C to +66C
Screw Terminal Torque
14-18 in-lbs
Termination
Back or Side Wire
Line Contacts
Brass
Ground Clips
Brass
Short Circuit Current Rating
10kA
Pole
2

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
